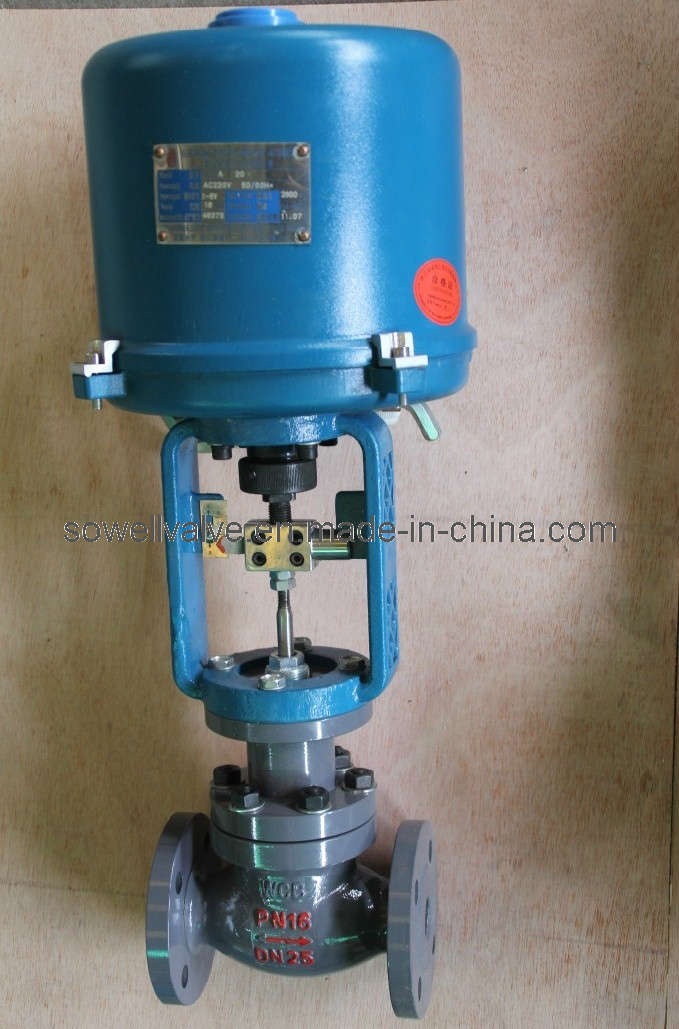

Small-port single-seated control valves are suitable for all general applications over a wide range of pressure drops and temperatures where flow rate is fairly small, The compact valve body, having S-shape flow passage that features low pressure loss, allows a large flow capacity, rangebility, and high accuracy flow characteristics which comply with the IEC standards. The valve plugs are availabie in a wide range of CV values, The seat leakage performance performance complies with the ANSI standards, The valve is actuated by a new compact and powerful diaphragm actuator loaded with multiple springs.
DN
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
Seat diameter mm
|
10
|
12
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
Rated KV
|
Linear
|
1.8
|
2.8
|
4.4
|
6.9
|
11
|
17.6
|
27.5
|
44
|
69
|
110
|
176
|
275
|
440
|
690
|
Equal-percentage
|
1.6
|
2.5
|
4.0
|
6.3
|
10
|
16
|
25
|
40
|
63
|
100
|
160
|
250
|
400
|
630
|
Nominal pressure (Mpa)
|
1.6,2.5,4.0,6.4,10
|
Travel (mm)
|
16
|
25
|
40
|
60
|
Flow characteristics
|
Linear ,equal-percentage,quick-open
|
Working TEM .
|
-40~+230(Normal TEMP),Heating type +230~+450(Middle TEMP),Special order
|
Flange size
|
Confirm to the standard JB/79.1(2)-94,HG20592-97,GB,ANSI,JIS,DIN etc.
|
Body material
|
WCB,304,316,WC6,Ti,Ni,Hastelloy,Monel etc
|
Plug material
|
304,316,420,Ti,Ni,Hastelloy,Monel etc
|
Body type
|
Straight Single-seated Cast Ball Valve
|
Bonnet type
|
Normal Type(Normal TEMP),Heating Type(Middle TEMP)
|
actuator
|
PSL
|
PSL-201
|
PSL-202
|
PSL-204
|
PSL-208
|
PSL-312
|
361L
|
361LSA-08
|
361LSA-20
|
361LSB-30
|
361LSB-50
|
361LSC-65
|
361LXA-08
|
361LXA-20
|
361LXB-30
|
361LXB-50
|
361LXC-65
|
