Solenoid valve 2L is direct action type two-position & two-port solenoid valve. It adopts the diaphragm seal structure, with zero differential pressure starting function, handsome shape, and large flow. It is a switch element most normally used in modern industrial pipeline.

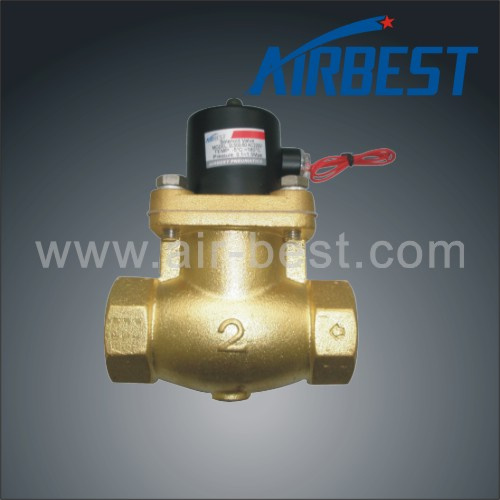

1. Solenoid valve 2L 2 port solenoid valve (high temperature type).
2. We have ISO9001 certificate.
3. Similar to Airtac type.
Model |
2L170-15 |
2L170-20 |
2L200-25 |
2L300-35 |
2L300-40 |
2L500-50 |
Fluid |
Air, Water, Steam |
Action |
Internally pilot acting, normally closed |
Type of actuation |
2 port 2 position |
Orifice size |
17mm |
20mm |
30mm |
50mm |
Cv |
4.8 |
12 |
20 |
48 |
Port size |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
Viscosity limit |
Under 20CST |
Operating pressure range |
Steam, Water, Air: 0.1~1.5MPa |
Proof pressure |
2.25MPa |
Ambient and fluid temperature |
-5~180 centigrade ( No freezing) |
Allowable voltage range |
± 10% of rated voltage |
Material of body |
Brass |
Seal material |
PTFE |
