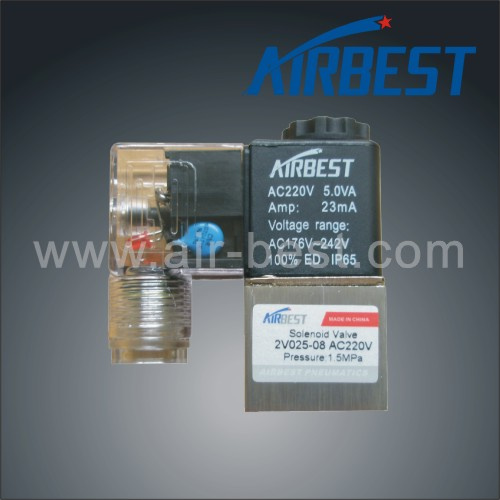

Solenoid valve 2V is direct action type two-position & two-port solenoid valve. It adopts the diaphragm seal structure, with zero differential pressure starting function, handsome shape, and large flow.
It is a switch element most normally used in modern industrial pipeline.
1. Solenoid valve 2V 2 port solenoid valve.
2. We have ISO9001 certificate.
|
Model |
2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
2V250-25 |
|
Fluid |
Air, Water, Oil |
|
Action |
Direct acting, normally closed |
Internally pilot acting, normally closed |
|
Type of actuation |
2 port 2 position |
|
Orifice size |
2.5mm |
13mm |
25mm |
|
Cv |
0.23 |
6.2 |
23 |
|
Port size |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
|
Viscosity limit |
Under 20CST |
|
Operating pressure range |
Air, water, oil: 0~1.0 MPa |
Air, water, oil: 0.05~1.0 MPa |
|
Proof pressure |
1.5MPa |
|
Ambient and fluid temperature |
-10~80 degree ( No freezing) |
|
Allowable voltage range |
AC: -20%~+10% of rated voltage DC: -15%~+10% of rated voltage |
|
Protect |
IP 65 |
|
Power consumption |
AC 220V: 4.5VA DC 24V: 5.0W |
|
Insulation |
F Class |
|
Material of body |
Brass with zinc plated |
Brass |
|
Seal material |
VITON |
NBR |
