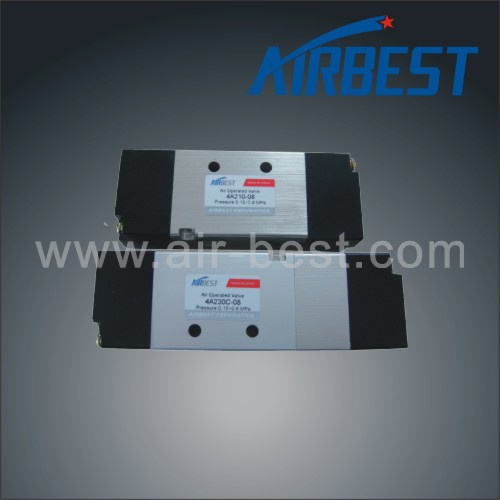

1. Solenoid Valve 4A200.
2. Other types: 4A100, 4A300, 4A400.
3. Similar to Airtac type.
4. We have ISO9001 certificate.
|
Item/Model |
4A210-06 |
4A220-06 |
4A230C-06 |
4A230E-06 |
4A230P-06 |
4A210-08 |
4A220-08 |
4A230C-08 |
4A230E-08 |
4A230P-08 |
|
Fluid |
Air |
|
Action |
Exterior control |
|
Type of Actuation |
5 Port 2 Position |
5 Port 3 Position |
5 Port 2 Position |
5 Port 3 Position |
|
Orifice Size |
5.5mm 2 (Cv=0.78) |
5.5mm 2 (Cv=0.67) |
5.5mm 2 (Cv=0.89) |
5.5mm 2 (Cv=0.67) |
|
Port Size |
In=Out=Exhaust=1/8 |
In=Out=Exhaust=1/4 |
|
Lubrication |
Not Required |
|
Op erating Pressure Range |
0.15~. 8Mpa |
|
Proof Pressure |
1.2 Mpa |
|
Ambient and Fluid Temperature |
-5~60 (No Freezing) |
|
Max. Operating frequency |
5 Hz |
3 Hz |
5 Hz |
3 Hz |
|
Weight |
220g |
320g |
400g |
220g |
320g |
400g |
