| Price: | Negotiable |
|---|---|
| Trade Terms: | By sea or by air |
| Min Order: | 10 |
| Series | VF3000 | VF5000 | ||
| Fluid | Air | |||
| Operating pressure range | 2 position single/3 position | 0.15~0.9MPa | ||
| 2 position double | 0.1~0.9MPa | |||
| Ambient and fluid temperature | -10~50 centigrade ( no freezing) | |||
| Response time | 2 position single/double | 20 ms or less( at the pressure of 0.5MPa) | ||
| 3 position | 40 ms or less( at the pressure of 0.5MPa) | |||
|
Max. operating frequency |
2 position single/double | 10 Hz | 5Hz | |
| 3 position | 3 Hz | 3 Hz | ||
| Lubrication | Not required | |||
| Manual override |
Non-locking push Locking slotted |
Non-locking push Locking type B |
||
| Mounting orientation | Unrestricted | |||
| Shock /Vibration resistance | 300/50 (m/s 2) | |||
| Enclosure | Dustproof | |||

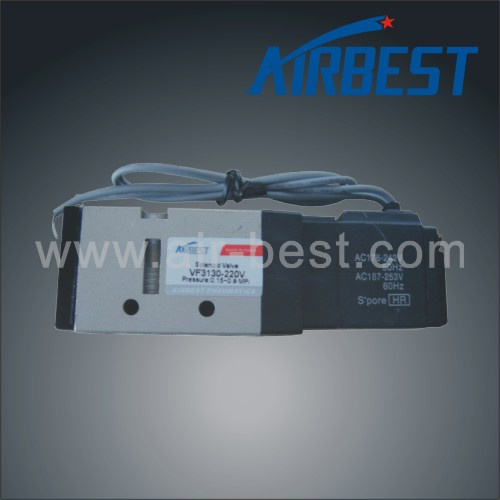

| Prod Model: | VF3130 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port: | 5 |
| Connection Form: | Thread |
| Type: | Pilot Operated |
| Power Supply: | Both DC and AC |
