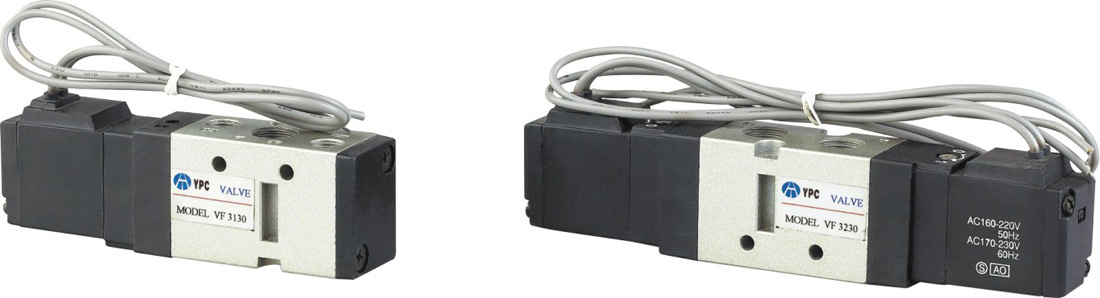

The specification of valve is Two-position Five-way Solenoid Valve.
Clil and places: 1. Single-head Double-position
2. Double-head Double-position
3. Double-head Three - position Close Type \ Exhaust Type \ Presure Type
| Model | VF3130 | VF3120 | VF33(4/5)30 | VF5120 | VF5220 | VF53(4/5)50 |
| Joint Pipe Bore | G1/4” | G1/4” | G1/4” | G3/8” | G3/8” | G1/2” |
| Working Medium | 40 Micron Filtered Air |
| Motion Pattern | Inner Guide Type |
| Working Pressure | 0.15~0.8Mpa
|
| Max. Pressure Resistance | 1.0Mpa
|
| Operating Temperature Range | 5~50 ºC
|
| Voltage Range | ± 10% |
| Material of Body | Aluminum Alloy |
| Power Consumption | AC : 4.5VA DC : 3W |
| Insulation & Protection Class | F Class IP65 |
| Wiring Form | Lead Wire |
| Highest Action Frequency | 5 Cycle/sec |
| Shortest Excitation Time | 0.05 Second |
Ningbo Haitian Automatic Industry Co., Ltd is an enterprise mainly specialized in development, production and sale for pneumatic products. It is located in Xikou, Ningbo, a national tourist zone with beautiful scenery and convenient traffic. It mainly manufactures more than 20 series of products, such as air preparation components, controlling valves, air cylinders, auxiliary components, including regulator valves, solenoid valves, gas control valves, draw-off valve, pneumatic cylinders and so on, nearly a hundred specifications.
Since its foundation, it constantly sticks to the managing principle of "taking technological innovation as the core and market demand as the guide", and carries out the managing theory of "people first and win by quality", it aims at "perfect quality, service, technology and reasonable price", and it is ensured by "perfect sales network and service system", widely servicing in machinery, environmental protection, metallurgy, light textile, printing and dyeing, medicine, food, light industry, boats and ships, engine, scientific research and other industries.
