The product is suitable for Standard Vlktage: DC 12V DC 24V
DC 12V (500Hz/60Hz)
DC 24V (500Hz/60Hz)
DC 36V (500Hz/60Hz)
DC 110 (500Hz/60Hz)
DC 220V (500Hz/60Hz)
DC 380V (500Hz/60Hz)

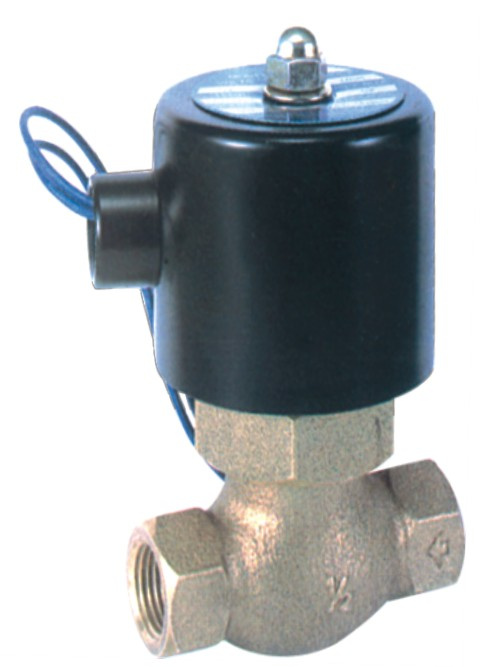

Type: Two-position Two-way Solenoid Valve
| Model | US-10 | US-15 | US-20 | US-25 | US-35 | US-40 | US-50 |
| Joint Pipe Bore | G3/8´ | G1/2´ | G3/4´ | G1´ | G1 ¼´ | G1 ½´ | G2´ |
| Working Medium | Air, Water, Steam |
| Aperture of Rate | 10mm | 15mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| Motion Pattern | Guide Type |
| Type | Normal Closed Type |
| Working Pressure | 0.1~0.8Mpa
1~8Bar |
| Max. Pressure Resistance | 1Mpa
10Bar |
| Operating Temperature Range | -5~+180 ºC
21~176F |
| Voltage Range | ± 10% |
| Material of Body | Brass |
| CV Value | 4.8 | 12 | 20 | 48 |
| Material of Oil Seal | PTFE , NBR |
Ningbo Haitian Automatic Industry Co., Ltd is an enterprise mainly specialized in development, production and sale for pneumatic products. It is located in Xikou, Ningbo, a national tourist zone with beautiful scenery and convenient traffic. It mainly manufactures more than 20 series of products, such as air preparation components, controlling valves, air cylinders, auxiliary components, including regulator valves, solenoid valves, gas control valves, draw-off valve, pneumatic cylinders and so on, nearly a hundred specifications.
Since its foundation, it constantly sticks to the managing principle of "taking technological innovation as the core and market demand as the guide", and carries out the managing theory of "people first and win by quality", it aims at "perfect quality, service, technology and reasonable price", and it is ensured by "perfect sales network and service system", widely servicing in machinery, environmental protection, metallurgy, light textile, printing and dyeing, medicine, food, light industry, boats and ships, engine, scientific research and other industries.
