Quick Details
Model: DN15-DN200 Standard or Nonstandard: Standard Structure: Butterfly
Pressure: Low Pressure Power: Manual Material: Stainless Steel
Temperature of Media: Medium Temperature Media: Water Port Size: DN15-DN200
Brand Name: YUY
Packaging & Delivery
Packaging Detail: INNER POLY BAG
Delivery Detail: 2-3 days after payment
Specifications
Application:

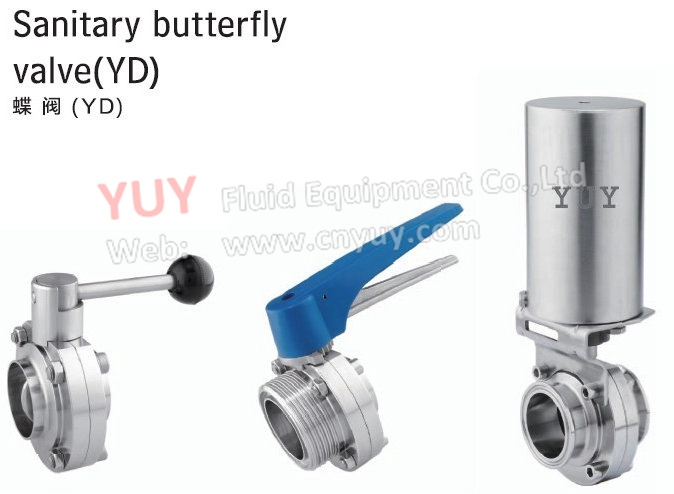

This valve is sanitary, automatic or manual handle valve, widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.
Working principle:
The valve is mechanically locked in its 4 position of open or close through four multi-functional positioning rod maual operation. It can contronl the flow of the medium
Material:
Steel parts: Stainless 304\316L
Sealing: EPDM. (standard)
SILICON, FDM, HNBR(CHOOSE).
Advantages:
Sealings: Excellent acid proof, alkali proof and high temperature performance. Little degree of permanent compression deform.
Investment forging valve plug: Pressure durability less than 1.2MPA, metallographic structure beeter than casting ones.
Appareant design: Keep updated with international fashion style.
Cost performance: Impor substituted, cost saved and reiableoperation.
Connection types:
Welded.
Clamped
Screw or threaded
Welded - srew
Flange
To assure the connection and substitution with imported facilities, all the connecton styles withe pipe or equipment are made to DN11850, IDF / ISO, SMS international standard size.
Operation Type:
Manual: Lever or duck-billed
Pneumatic actuator: Stainless teel or plastic with control box or not.
Electric actuator: Sigle action or double action
Features of Pneumatic actuator:
Normally opened: The spring is OPEN and pneumatic OFF
Normally closed: The spring is OFF and pneumatic OPEN
With signal feedback inductive proder / sensor for option
Compact appearance, small volume, large torgue
Simple and convenient assembly
Technical Parameter:
OD Range: DN25~ DN200, 1"~ 8"
Anti-pressure: 10Bar
Compressed Air supply: MIN: 4 BAR, MAX: 8BAR
Pneumatic Actuator torgne: 40Nm
Finishing degree:
Cutting: Ra1.5 ~ 3.2um
Polish: Ra0.4~ 0.8um
Requirements for compressed air quality that the executor needs:
Compressed air joint: Air pipe equiped equips with air adapter R1/"
Max grain size: 0.11mm
Max Oil content: 0.08 ppm
Dew point: 10 ° C or less
Max water conent: 7.5g/kg
YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.
YUY is specialized in Manufacturing
Sanitary Pumps
Sanitary Valves
Sanitary Pipe fittings etc.,
Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.
For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.
All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.
In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.
Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.
Come, and join us!
