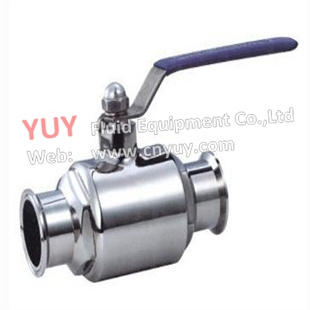

Yb Sanitary Stainless Steel Ball Valve

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Wenzhou Yuanen Fluid Equipment Co., Ltd.

Showroom Product Company Profile

Specifications

sanitary Ball Valves

1)Application:

It can be used to transfer the material .

The range of application including food,beverage processing ,medicine and chemical industry area ,

the bore design won't have any fluid resistance.It can be used to treat the fluid and the handling viscous fluid or particulate material.

2)Material:

The part contact with the medium:stainless steel 304 or 316L

The sealing material:EPDM ,SILICON,FDM,HNBR

3)The connection :Welded,threaded,clamp,threaded and welded,flange

The connection method with pipes or equipment is accordance with DN11650,IDF/ISO,SMS ,

to ensure the connection and convert with the imported equipment .

4)Diameter range :DN25-DN100

5)The pressure :10bar

The compressed air pressure :Minimum 4bar

Max 8bar

6)The actuator torque:40NM

The finishing :

Cutting:Ra 1.5-3.2um

Polishing :Ra0.4-08um

Prod Model:	YB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn25-Dn100
Max Pressure:	10bar
Sealing:	PTFE
Material:	Stainless Steel
Channel:	Straight Through Type
Structure:	Fixed Ball Valve
Type:	Fixed Ball Valve
Application:	Food Industrial Usage
Connection Form:	Clamp, Weld, Flange, Male
Function:	Flow

YUY Fluid Equipment Co., Ltd, located in Wenzhou, is one of the few domestic manufacturers of high precision fluid equipments.

YUY is specialized in Manufacturing

Sanitary Pumps

Sanitary Valves

Sanitary Pipe fittings etc.,

Which can be widely used in food, beer, beverage, dairy products, cosmetic, pharmacy and biology engineering field.

For that our products will be applied in the fluid systems with strict sanitary and sterilizing requirement, so we do have many strict tests for our products, such as the performance curve test of pumps, frequency curve, the smooth and clean test, pressure test and so on.

All the commodities are made in accordance with the standards of ISO, IDF, DIN and 3A. The technology is comparable to the international level in the same field and the quality complies with the requirements of GMP. And the production of YUY is based on advanced manufacture technology and a high sense of responsibility, so that we can provide our customers the products with high quality and high precision.

In addition, our R&D department can explore new products according to out customers' particular requirement. And our production capacity is very great and efficiency, so we can supply the products with best delivery date.

Under the principle of that "the customers are our best inspectors; The market is the most impartial judge of enterprises; Our mission is to provide good quality products with competitive price and satisfactory service for our customers "YUY believe that our honesty, enthusiasm and enterprise will win your support. We are looking forward to starting cooperation, and establish mutual-benefit relationship with our customers, and reach win-win.

Come, and join us!
