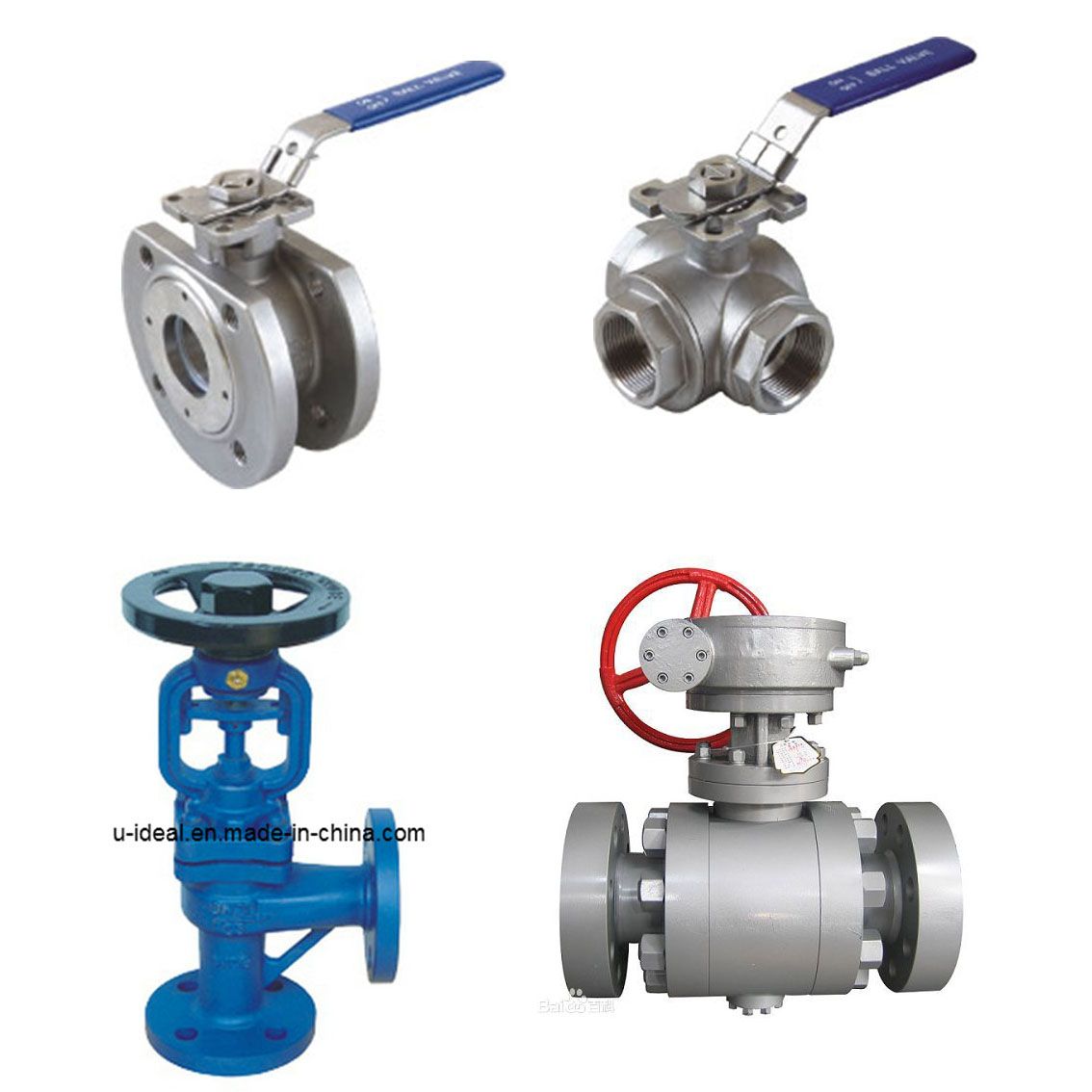

Stainless Steel 2/3 Ways Pneumatic/Manual Control Globe Ball Valve
Price: |
US $ 60/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Stainless Steel 2/3 ways Pneumatic/manual control globe Ball Valve
from Tianjin U-ideal instrument Co., Ltd, is our main producing pressure instrument. we have ball valve,control valve,globe valve ,2/3 ways valve,gate valve,knife valve,butterfly valve.150-600LB,
4-40, to 250º C,
Flange, BW
Operation (Manual, Gear, Pneumatic, Electric),
Design (ANSI B16.34, API 6D, API 608),
Face to face (ANSI B16.10, JIS B2002),
Standard (ANSI B16.5, JIS B2212, JIS B2214),
Material (ASTM WCB, A105, 304, 316, CF8, CF8M)
Design Description:Full port DesignBB, Bolted Bonnet, Split BodyFloating ball typeBlow-out proof stemFire durable constructionAnti Static deviceISO5211 Mounting PadAvailable with Gear Operated.Material: A216 WCB, ASTM A351 CF8/CF3, A351 CF8M/CF3MSIZE: 2"-12"Working Pressure: 150LB 300LB and 600LB Standard material specifications |
Part name | Material |
Body | A105 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Body cap | A105 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Ball | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Stem | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Seat | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
Seat ring | PTFE/RPTFE/NYLON |
Fixed turnnion | A105+Nip | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
O-ring | VITON | VITON | VITON | VITON | VITON |
Contact spring | 17-7PH/In conel | In conel | In conel | In conel | In conel |
Cover bolt | A193 B7 | A193 B8 | A193 B8M | A193 B8M | A193 B8M |
Cover nut | A194 2H | A194 8 | A194 8M | A194 8M | A194 8M |
Bearing | SF-1 | SF-1 | SF-1 | SF-1 | SF-1 |
Dimensions & weights |
Class 150 |
Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L(RTJ) | mm | 178 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 |
H | mm | 153 | 195 | 213 | 500 | 568 | 605 | 662 | 725 | 770 | 970 | 935 |
H1 | mm | 139 | 178 | 191 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 528 |
L0 | mm | 400 | 600 | 850 | 400* | 400* | 400* | 400* | 800* | 800* | 600* | 500* |
Weight | mm | 30 | 50 | 90 | 203 | 289 | 450 | 588 | 676 | 864 | 764 | 911 |
Dimensions & weights |
Class 300 |
Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L | mm | 216 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 911 |
L(RTJ) | mm | 232 | 299 | 321 | 419 | 518 | 584 | 664 | 778 | 854 | 930 | 1010 |
H | mm | 153 | 195 | 213 | 500 | 569 | 605 | 662 | 725 | 770 | 970 | 935 |
H1 | mm | 139 | 178 | 191 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 528 |
L0 | mm | 600 | 1250 | 1300 | 400* | 400* | 400* | 400* | 800* | 800* | 600* | 500 |
Weight | mm | 30 | 50 | 90 | 203 | 289 | 450 | 588 | 676 | 864 | 764 | 911 |
Dimensions & weights |
Class 600 |
Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L | mm | 292 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
L(RTJ) | mm | 295 | 359 | 435 | 562 | 663 | 790 | 841 | 892 | 994 | 1095 | 1200 |
H | mm | 153 | 195 | 213 | 500 | 569 | 645 | 702 | 750 | 815 | 970 | 1065 |
H1 | mm | 119 | 145 | 180 | 220 | 289 | 318 | 382 | 430 | 470 | 489 | 561 |
L0 | mm | 600 | 1250 | 1300 | 400* | 400* | 457* | 457* | 800* | 800* | 600* | 600* |
Weight | mm | 32 | 64 | 122 | 267 | 521 | 773 | 1118 | 1700 | 1970 | 1218 | 1646 |
Dimensions & weights |
Class 900 |
Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L | mm | 368 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1210 | 1321 |
L(RTJ) | mm | 372 | 384 | 460 | 613 | 780 | 841 | 968 | 1038 | 1140 | 1232 | 1334 |
H | mm | 162 | 205 | 239 | 591 | 700 | 700 | 820 | 950 | 990 | 1030 | 1200 |
H1 | mm | 119 | 145 | 180 | 213 | 254 | 327 | 368 | 442 | 483 | 523 | 615 |
L0 | mm | 600 | 1250 | 1300 | 450* | 600* | 750* | 750* | 600* | 600* | 600* | 600* |
Weight | mm | 48 | 78 | 138 | 275 | 547 | 847 | 1224 | 1676 | 2083 | 2694 | 3515 |
Dimensions & weights |
Class 1500 |
Size | inch | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L | mm | 368 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 |
L(RTJ) | mm | 372 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 |
H | mm | 197 | 254 | 291 | 655 | 660 | 735 | 860 | 950 | 1065 | 1235 | 1275 |
H1 | mm | 119 | 145 | 180 | 213 | 278 | 384 | 440 | 442 | 483 | 576 | 615 |
L0 | mm | 600 | 1250 | 1300 | 760* | 450* | 450* | 660* | 600* | 750* | 750* | 750* |
Weight | mm | 55 | 97 | 162 | 328 | 668 | 936 | 1408 | 1861 | 2392 | 3220 | 4491 |
Prod Model: |
P40R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control Type: |
Hand Operation |
Types Valve: |
Hand Operati Ball Valve |
Design: |
ANSI B16.34, API 6D, API 608 |
Face To Face: |
ANSI B16.10, JIS B2002 |
Standard.: |
ANSI B16.5, JIS B2212, JIS B2214 |
Temperature.: |
Low/Nor/High Temperature |
Type Of Drive: |
Pneumatic,Manual,Electrical |
Nominal Pressure.: |
Pn1.0-32.0MPa\ANSI Class 150-900\JIS10-20k |
Material: |
Stainless Steel |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Household Usage |
Connection Form: |
Flange,Thread,Welding,Snap |
Driving Mode: |
Pneumatic,Manual,Electrical |
Nominal Pressure: |
Pn1.0-32.0MPa\ANSI Class 150-900\JIS10-20k |
Function: |
Blow-Down,Relief,Atmospheric,Bypass,Valve |
Temperature: |
Low/Nor/High Temperature |
