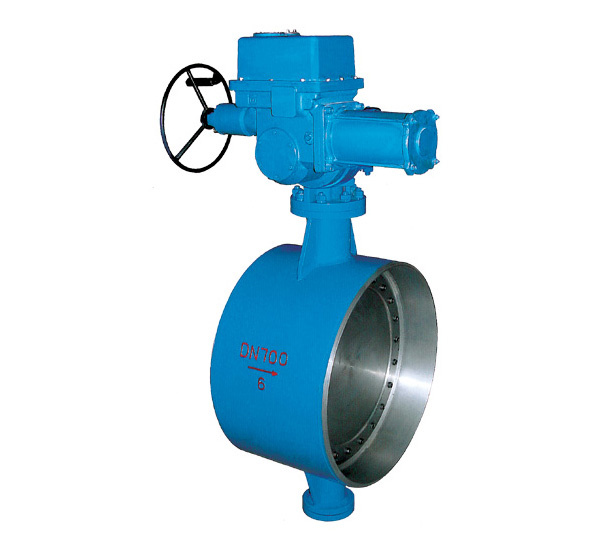

Stainless Steel Butt-Welded Electric Actuatoring Butterfly Valve

Stainless Steel Butt-Welded Electric Actuatoring Butterfly Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
electric actuator flange butterfly valve
1.butterfly valve Product modle :D97A1X
2.Nominal Diameter :DN40-DN1000mm
3.Nominal Pressure :PN1.0/1.6Mpa
4.Suitable medium:water,gas and oil etc.
5.Suitable temperature:-23 to 121 deg


BODY

DISC

STEM

SEAT

BUSHING

MATERIAL

WORKING PRESSURE



CAST IRON

DUCTILE IRON WITH NICKEL PLATED

CARBON
STEEL

NR

-20-+85

LUBRIZED
BRONZE

DUCTILE
IRON

ALUMINUM BRONZE

STAINLESS
STEEL

HYPALON

-18-+135
INSTANTANEOUS
-18-+149

PTFE

ALUMINUM
BRONZE

STAINLESS STEEL



EPDM

-45-+135
INSTANTANEOUS
-50-+150



CARBON
STEEL

CARBON
STEEL



NEOPRENE

-7-+193
INSTANTANEOUS
-7-+107



STAINLESS STEEL





NBR

-12-+82
INSTANTANEOUS
-12-+93









WEAR-RESISTANT RUBBER

-10-+50









VITON

-23-+150









HEAT-RESISTANT RUBBER

-20-+150









PTFE

+10-+150


Prod Model: D97A1X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Size: Dn40-Dn1000
Certificate: ISO9001, CE, RoHS
Delivery Time: in 45days
Warranty: 18months
Connection Form: Flange
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Household Usage
Material Of Seal Surface: Metal Hard Sealed
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
