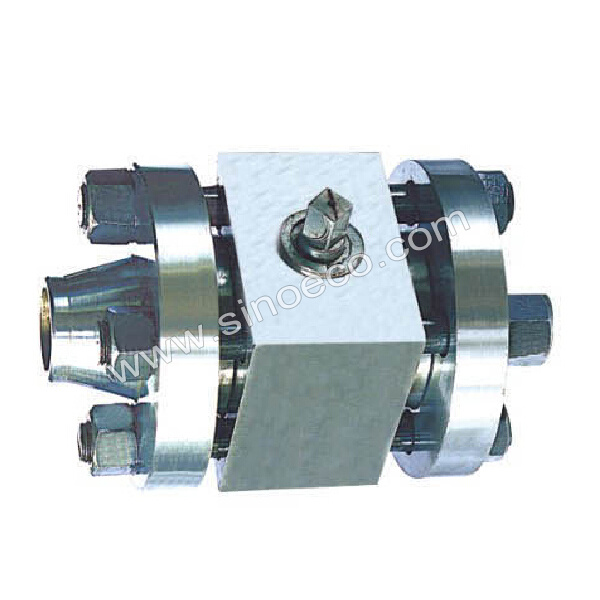

Stainless Steel High Pressure Butt Welded Ball Valve
Production Range:
Nominal Size: 1/2" ~ 2" (DN15 ~ DN50)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel
Seal Ring: PTFE
Operation:Manual
Suitable medium: water,oil,air and some corrosive liquid
Temperature range:-20°C-180°C
Standard:
Pressure Rating | PN(Mpa) | CLASS(Lb) | Testing Medium |
10.0 | 15.0 | 25.0 | 600 | 900 | 1500 |
Strength Testing | 15.0 | 22.5 | 37.5 | 15.5 | 22.5 | 38.5 | water |
High Pressure Seal Testing | 11.0 | 16.5 | 27.5 | 11.5 | 16.5 | 28.2 |
Air Seal Testing | 0.6 | air |
Dimension Sheet
PN | Nominal Diameter | Port Size(mm) |
(in) | mm | L | d | D | H | W |
PN10.0(Mpa) 600(Lb) | 1/2" | 15 | 165 | 14 | 22 | 52 | 130 |
3/4" | 20 | 190 | 19 | 27 | 56 | 160 |
1" | 25 | 216 | 25 | 34 | 67 | 160 |
11/4" | 32 | 229 | 32 | 42 | 74 | 185 |
11/2" | 40 | 241 | 38 | 48 | 88 | 185 |
2" | 50 | 292 | 49 | 60 | 95 | 200 |
PN15.0(Mpa) 900(Lb) | 1/2" | 15 | 165 | 14 | 22 | 52 | 145 |
3/4" | 20 | 190 | 19 | 27 | 56 | 175 |
1" | 25 | 216 | 25 | 34 | 67 | 175 |
11/4" | 32 | 229 | 32 | 42 | 74 | 200 |
11/2" | 40 | 241 | 38 | 48 | 88 | 200 |
2" | 50 | 292 | 49 | 60 | 95 | 250 |
PN25.0(Mpa) 1500(Lb) | 1/2" | 15 | 216 | 12 | 22 | 55 | 150 |
3/4" | 20 | 229 | 16 | 27 | 58 | 180 |
1" | 25 | 254 | 21 | 34 | 70 | 180 |
11/4" | 32 | 279 | 29 | 42 | 78 | 220 |
11/2" | 40 | 305 | 34 | 48 | 92 | 250 |
