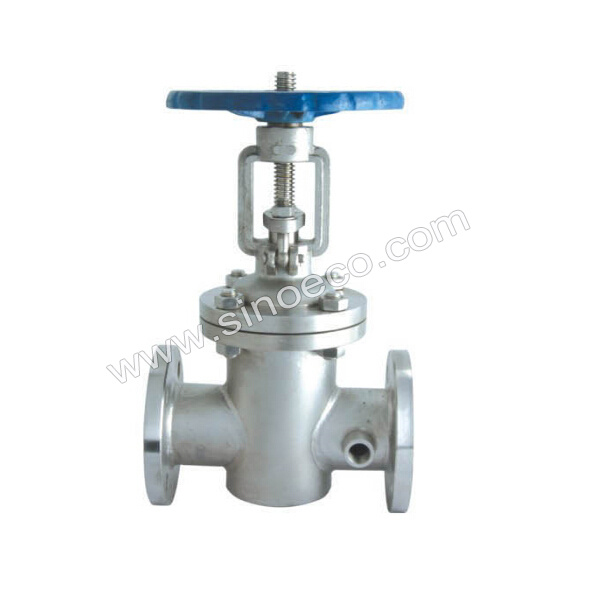

Stainless Steel Jacket Gate Valve
Advantages :
1.Small fluid resistance
2. The torque for opening and closing is small, so it is easy to open and close
3.The medium flowing direction is not restricted, and it doesn't disturb flowing and reduce the pressure of pipeline
4. Short length structure
5.Good sealing performance
6.Sime shape,good casting process, widely used
Product Parameter
DN(mm) | L(mm) | D(mm) | D1(mm) | D2(mm) | b(mm) | z-*d(mm) | H(mm) | Do(mm) | WT(kg) |
40 | 200 | 160 | 125 | 100 | 18 | 4-*18 | 310 | 200 | 49 |
50 | 250 | 180 | 145 | 120 | 18 | 4-*18 | 358 | 240 | 54 |
65 | 265 | 195 | 160 | 135 | 20 | 8-*18 | 373 | 240 | 81 |
80 | 280 | 215 | 180 | 155 | 20 | 8-*18 | 435 | 280 | 100 |
100 | 300 | 245 | 210 | 185 | 22 | 8-*18 | 500 | 300 | 120 |
125 | 325 | 280 | 240 | 210 | 24 | 8-*23 | 614 | 320 | 210 |
150 | 350 | 335 | 295 | 265 | 26 | 12-*23 | 674 | 360 | 260 |
200 | 400 | 405 | 355 | 320 | 30 | 12-*25 | 818 | 400 | 300 |
250 | 450 | 460 | 410 | 375 | 30 | 12-*25 | 969 | 450 | 400 |
300 | 500 | 520 | 470 | 435 | 34 | 16-*25 | 1145 | 560 | 490 |
