Specification
1.Size:DN50-DN600(2"-24")
2.Pressure:PN0.6MPa, PN1.0MPa,PN1.6MPa(Class150)
3.Standard:API600,API603,BS1414,DIN3352,ISO10434
Description of products
1. Vlave disc controls opening and closing. Motion direction is perpendicular to flow direction.
2. Small fluid resistance,sealing surface withstand less erosion and erosion by the media.

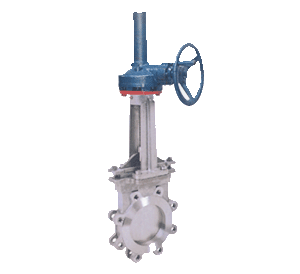

3. Knife gate valve has smaller installation space,work pressure is low,no accumulation of debris.
Materials of main parts
valve body:stainless steel,carbon steel,cast steel
Valve stem:stainless steel
Valve gate:stainless steel
Sealing surface:Rubber,PTFE,S.S, metal seal
The main technical data
1.Shell test(MPa):1.5PN
2.Seal test(MPa):1.1PN
3.Working temperature:Rubber ≤ 80ºC,PTFE seal ≤ 180ºC,hard seal ≤ 425ºC
4.Suitable Media: slurry,syrup,pulp,sewage,coal ash,slag and water mixture,etc
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
