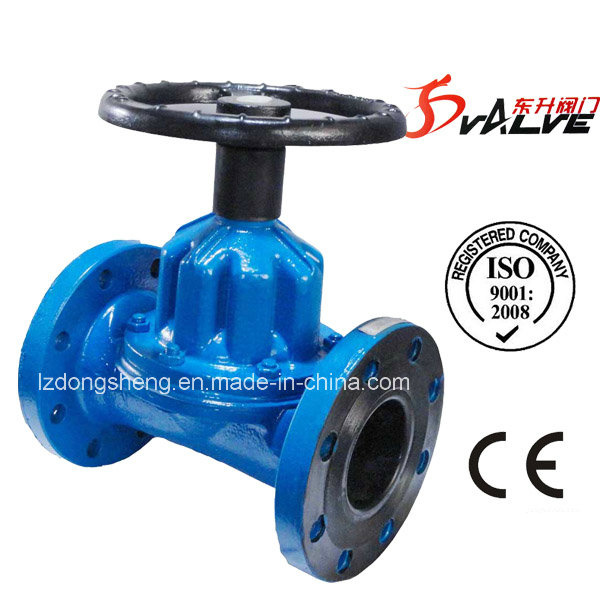

Straight-through type Diaphragm Valve
Features:
. Design & Manufacture: GB12239-89
. Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
. Flanged Dimension: GB 4216, GB 9113, GB12221
. Inspect & Test: GB/T 13927
. Operation: Handwheel
. Size Ranges: 1'' to 12''NB
. Pressure Rating: PN6, PN10, PN16,
Materials available in
. Body/Bonnet: Cast Iron, Ductile Iron,
. Lining: Rubber-NR
. Diaphragm: Rubber
. Disc: Cast Iron, Ductile Iron, Stainless Steel
. Valve spindle: Carbon Steel & Stainless Steel
. Handwheel: Iron & Steel
. Screw nut: Copper alloy
Application:
PN Nominal pressure 1.6Mba
Sealing test pressure 1.76Mba
Strength test pressure 2.4Mba
Suitable temperature -20— 135° C
| DIMENSION: Units(mm) |
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 194 | 216 | 258 | 309 | 362 | 412 | 527 | 640 | 755 |
| L1 | 188 | 222 | 252 | 301 | 354 | 404 | 517 | 630 | 745 |
| ΦE | 165 | 185 | 198 | 220 | 250 | 283 | 335 | 395 | 445 |
| ΦD | PN10 | Φ125 | Φ145 | Φ160 | Φ180 | Φ210 | Φ240 | Φ295 | Φ350 | Φ400 |
| (EN1092-2) | PN16 | Φ355 | Φ410 |
