Application Norm
Size:1/4"-4"(DN8-DN100)
Working pressure:1000psi-2000psi
Temperature range: -40°c~+180°c ~ +250°c
Suitable medium:Gas Water Oil Acid
Structure:
Specifications:

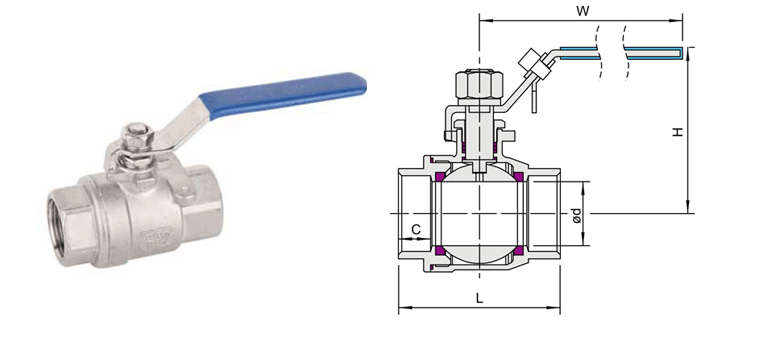

Main Outer Size:
DN | G | B | L | E | H | A |
8 | 1/4" | 8 | 54 | 11.5 | 52 | 105 |
10 | 3/8" | 10 | 54 | 11.5 | 52 | 105 |
15 | 1/2" | 15 | 62.5 | 14 | 65 | 135 |
20 | 3/4" | 20 | 73.5 | 15 | 70 | 135 |
25 | 1" | 25 | 86 | 15 | 78 | 150 |
32 | 1-1/4" | 32 | 101 | 18 | 82 | 180 |
40 | 1-1/2" | 40 | 110 | 19 | 90 | 200 |
50 | 2" | 50 | 123 | 19 | 98 | 200 |
65 | 2-1/2" | 65 | 165 | 23 | 140 | 240 |
80 | 3" | 80 | 190 | 25 | 135 | 260 |
100 | 4" | 100 | 220 | 28 | 170 | 300 |
Main parts and materials:
Temperature: -40°c~+180°c -40°c~+230°c
PART NAME | MATERIAL |
Joint Ring | PTFE |
Ball | SS201,304,316 |
Joint Gasket | PTFE |
Cap | SS201,304,316 |
Body | SS201,304(CF8),316(CF8M) |
Stem | SS201,304,316 |
Thrust Washer | PTFE |
Stem Packing | PTFE |
Gland Nut | SS201,304,316 |
Stem Washer | SS201,304,316 |
Stem Nut | SS201,304,316 |
Handle Cover | PLASTIC |
Handle | SS201,304 |
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
