Two piece body
One piece body is used for the body to guarantee sufficient strength and rigidity under maximum rated operating pressure. The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of operating condition. Enough margin wall thckness and adaptation of high strength connective bolts are convenient for valve maitenance and sufficiency to support the stress from piping.

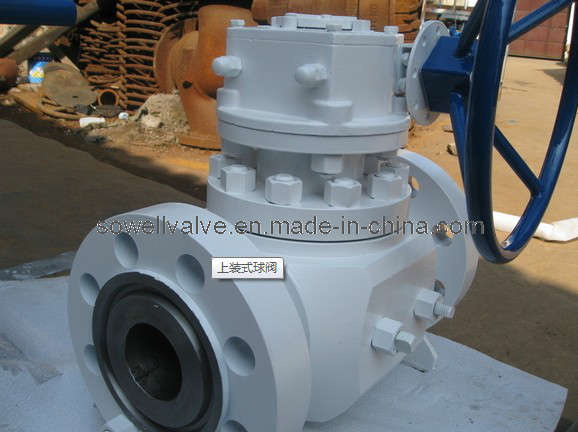

Top entry
Its most difference from common ball-valve. That its maintenance can be made on pipe line and without dismounting from the pipe line. The back space seat structure is adopted for the seat and the rear portion of seat retainer is oblique angle to prevent accumulation of impurity from affecting back space of seat.
Low operation torque
Top entry series ball valve has a trunnion mounted ball, whose surface is ground, polished and hard face treated. The ball and stem is integrated, sliding bearing is installed on the external bore so that the friction radius is small and operation torque is very low.
Emergency sealing, Reliable sealing
The seat sealing is formed by seat sealing and metal retainer component. The seat retainer floats axially and low pressure sealing of valve seat is reached by pre-pressure of spring. In addition, the piston effect of valve seat is designed reasonably, which realized high pressure sealing by the pressure of operating medium and realize the interception of retainer to form the sealing of the body. The expansion graphite ring is designed to realize sealing under fire condition.
Double block&bleed(DBB)
When ball is full open or close position, the transmitter substance in center cavity of body can be released by drainage and emptying devices. In addition, the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.
Anti-static and fire safe design
The fire prevention design of valve meets the requirement in API6FA/API607 standard and the design of the anti-static conforms to regulations in API6D and BS5351.
Extension stem
For the underground installed valve, the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.
Various driving types
The top pad of valve designed according to ISO 5211, which is convenient for connection and exchange of various drivers. The common driving types are manual, electrical, pneumatic and pneumatic/hydraulic.
|
nominal diameter |
inlet |
outlet |
|
DN 25-600 mm / 1" -24" |
DN 50-2500 / 2" -100" |
|
nominal pressure |
PN 25-630 / Ansi 150-4000 lb/sq. in |
/ |
|
material |
1.0460 - 1.5415 - 1.7335 - 1.7380 - 1.4903 - 1.4901 - 1.0619 - 1.5419 - 1.7357 - 1.7379 - 1.7706 - 1.4931 - C12A - 1: 6368 |
|
piping connection |
welding ends or flanges in all designs possible |
|
characteristic |
equal percent / linear / customer-specific |
|
pressure reduction |
single-stage / multiple-stage (controllable across all stages) |
|
body |
globe-, angle-, or Z-Type in casting or forged material |
|
actuator |
hydraulic - pneumatic - electric |
