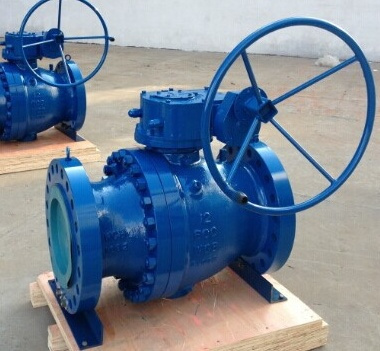

Trunnion Mounted Gear Operated Ball Valve
Price: |
US $ 200-50000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Set |
Pay Type: |
L/C,T/T,D/P |
Cast steel and Forged steel trunnion mounted Ball ValvesStandard compliance:1) Design and manufacture: API6D, API608, BS5351, ANSI B16.34
2) Test and inspection: API6D, API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Fire safe: API607, API6FA
7) Other standards (DIN, BS, JIS) is also available upon request.Specifications:1) Size: 2" to 48"
2) Class: 150LB to 2500LB
3) Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Lever or Gear operationCast Steel Ball Valves - Trunnion Ball Type Class 150 / 300 / 600 / 900 / 1500 / 2500
Design and manufacture: API 6D, API 608 , BS5351
ANSI B16.34
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: 2"~24" to ANSI B16.5
over 26" to MSS SP-44
to B16.47 SERIES A
to B16.47 SERIES B
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Materials of body/bonnet and trimBody/bonnet | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
Ball | SS304/SS316/S304L/SS316L |
Seat | PTFE, NYLON, METAL TO METAL |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc.
Standard materials of partsNo. | Parts | Materials |
1 | Body | ASTM A216 WCB |
2 | Bonnet bolt | ASTM A193 B7 |
3 | Bonnet nut | ASTM A194 2H |
4 | Gasket | PTFE |
5 | Bonnet | ASTM A216 WCB |
6 | Ball | SS304 |
7 | Seat | ASTM A182 F6 |
8 | Spring | AISI 6150 |
9 | Seat ring | PTFE |
10 | O-ring | VITON |
11 | Stem | A182 F6a |
12 | Stem-beating | Cu-Pb Alloy |
13 | O-ring | VITON |
14 | Gland flange | ASTM A216 WCB |
15 | Stem packing | PTFE or Flexible graphite |
16 | Yoke | ASTM A216 WCB |
17 | Gear operation | Ductile iron |
18 | Small ball | SS304 |
19 | Small spring | SS304 |
20 | Injection fitting | |
21 | Plug | AISI 1025 |
Dimensions (in mm & inch) and weight
Class 150DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
L(RF) | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1245 |
L1(BW) | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L2(RTJ) | 191 | 203 | 216 | 241 | 406 | 470 | 546 | 622 | 699 | 775 | 876 | 927 | 1080 | |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
Do (W) | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
RF (Kgs) | 15 | 19 | 38 | 65 | 97 | 160 | 240 | 390 | 510 | 750 | 895 | 1190 | 2100 | 3000 |
BW (Kgs) | 13 | 17 | 35 | 55 | 92.8 | 154 | 227 | 365 | 478 | 711 | 868 | 1138 | 2015 | 2900 |
Class 300DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
L(RF) | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L1(BW) | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L2(RTJ) | 232 | 257 | 298 | 321 | 419 | 518 | 584 | 664 | 778 | 854 | 930 | 1010 | 1165 | 1372 |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
Do (W) | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
RF (Kgs) | 18 | 27 | 47 | 80 | 118 | 200 | 365 | 530 | 740 | 1030 | 1320 | 1540 | 2600 | 3900 |
BW (Kgs) | 14 | 22 | 38 | 65 | 105 | 185 | 342 | 503 | 713 | 1000 | 1285 | 1498 | 2540 | 3825 |
Class 600DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L(RF) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
L1(BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
L2(RTJ) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 630 | 725 | 800 | 850 |
Do (W) | 600 | 850 | 1250 | 1300 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 |
RF (Kgs) | 38 | 56 | 66 | 122 | 217 | 350 | 660 | 820 | 830 | 1160 | 1420 | 1650 |
BW (Kgs) | 31 | 51 | 58 | 117 | 200 | 327 | 605 | 790 | 800 | 1030 | 1305 | 1505 |
Class 900DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L(RF) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 |
L1(BW) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 |
L2(RTJ) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1032 | 1133 | 1222 | 1327 |
H | 162 | 195 | 205 | 239 | 290 | 355 | 510 | 595 | 650 | 750 | 835 | 900 |
Do (W) | 600 | 850 | 1250 | 1300 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 |
RF (Kgs) | 48 | 60 | 78 | 138 | 250 | 375 | 710 | 890 | 910 | 1200 | 1480 | 1760 |
BW (Kgs) | 44.5 | 52.5 | 75.2 | 131 | 232 | 355 | 690 | 827 | 870 | 1100 | 1210 | 1620 |
Class 1500DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
L(RF) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 |
L1(BW) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 |
L2(RTJ) | 371 | 422 | 473 | 549 | 711 | 842 | 1000.5 | 1146 | 1276 | 1406 |
H | 197 | 220 | 254 | 290 | 355 | 510 | 595 | 655 | 680 | 780 |
Do W) | 600 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 | *800 |
RF (Kgs) | 55 | 80 | 97 | 162 | 290 | 390 | 745 | 935 | 1000 | 1305 |
BW (Kgs) | 51 | 71 | 92.8 | 157.5 | 227 | 335 | 697 | 885 | 915 | 1200 |
* Worm gear operated. All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
Prod Model: |
TM GO FE BALL VALVE |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2" to 48" or Larger |
End Type: |
Flanged End and Butt Welded End |
Port: |
Full Bore and Reduce Bore |
Ball Type: |
Trunnion Mounted and Floating Ball |
Pressure: |
150lb to 2500lb |
Seat: |
Soft Seat and Metal Seat |
Entry Type: |
Side Entry and Top Entry |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Water Industrial Usage |
Material: |
Carbon Steel,Stainless Steel,Alloy Steel |
Nominal Pressure: |
150lb to 2500lb |
Function: |
on-off |
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
We welcome any potential customer to contact us for more information. We hope, with our technical knowledge and professional experience, our company will become one of your best reliable business partners in China.
