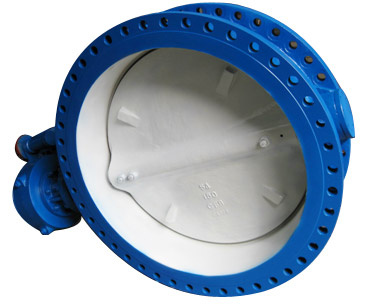

Warmgear Butterfly Valve

Warmgear Butterfly Valve
Price: Negotiable/Piece
Trade Terms: By Sea or By Air
Min Order: 2/Piece
Double eccentric butterfly valve
Double flange NBR/EPDM rubber soft seal butterfly valve replaceable isc sealing ring used for water or seawater with lever/worm gear box/electric actuator.
DN50-DN4500, PN6/10/16/25, available material cast iron, ductile iron GGG40/GGG50/WCB/SS, used for water.
Product features
· To DIN3352 or API609
· Face to face per DIN3202/ISO5752
· Flange ends dimension DIN2501/ANSI B 16.5/ANSI B 16.47
· Final inspection tests to API598/DIN3230.
Materials
· Body and disc: Cast iron, ductile iron GGG40/GGG50/WCB/SS
· Shafts of stainless steel 2cr13
· Disc sealing ring in replaceable NBR/EPDM rubber.
· Seat face weld with copper alloy, micro finished.
Corrosion protection
· Inside and outside epoxy coating
· Applicable temperature: -20-100 different raw material for different work temperature
· Applicable medium: Water, oil, gas and other causticity medium (different raw material for different medium)

1) Brief
Flange type soft seal butterfly valve is our new product which design and manufacture according to the newest standard of DIN3354&API609, new structure and better performance. It can cut-off or control the flow rate and which can be used in metallurgy, chemical, electrical, municipal engineering, pipeline engineering etc. Appropriate medium: Water, oil, air and so on...
2)Characteristic
1. New structure design, much suitable size and weight;
2. The sealing ring can be replaced without dismantling the disc.
3. Double eccentric disc and body structure, easy operating;
4. Sliding fit between seal and seat, lower abrasion and longer lifetime;
5.90° Turning shaft design, which can control the disc at any position between 0° ~90° ;
6. Besides worm gear and level, electrical actuator, pneumatic actuator, hydraulic actuator can be used either;
7. Better flow characteristics, better performance.

6) External and connection dimension PN6
Note: 1. Above flange ends dimensions accord to DIN2501.
2. ANSI B16.5 and ASME B16.47 are also available.

7) External and connection dimension PN10

Note: 1. Above flange ends dimensions accord to DIN2501.
2. ANSI B16.5 and ASME B16.47 are also available.

8) External and connection dimension PN16

Note: 1. Above flange ends dimensions accord to DIN2501.
2. ANSI B16.5 and ASME B16.47 are also available.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Working Temperature: Medium Temperature (',120??C
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Auto Sealed
Material Of Seal Surface: Soft Sealed
Structure: Double-Eccentric Sealing
Gaoneng Valve Group Co., Ltd was established in 1985, two industrial zone ( sanqiao and lishui) and five baby companies, around 200 employees, of which 10 are engineers and technicians. GAONENG is a specialized manufacturer of industrial valve according to API, ASME, EN, ISO, JIS, DIN, BS, GOST & GB standards.

The product includes butterfly valve, ball valve, gate valve, check valve, globe valve, plug valve etc. Especially for butterfly valve is our leading products, maximum size can reach DN4500, almost cover any kinds of structure. Some items are the first in our domestic. Material can be cast iron, ductile iron, carbon steel, stainless steel etc.

GAONENG VALVE launched its quality management and safety system as ISO 9001, ISO14001, OHSAS18001 and awarded API 6D, API 600, API 607, API 6FA, CE/PED approvals for the product.

Upon the continues increase on customers demand, GAONENG invested a more effective control line with CNC lathe, CNC miller, CNC driller, and the max. Machining ability reached 4000mm. The connectable solid warehouse system from parts to finished good ensures the production flow can be alternative by vary demand.

GAONENG VALVE is dedicated to supplying high quality valve solutions for global industries since its inception in 1985. In the new century, GAONENG is facing a historical development opportunity and furious competition. By holding the persistence improving in management and product quality, GAONENG will provide higher and better service to you.
