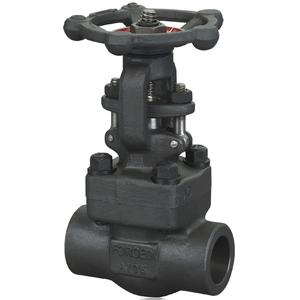

1. Steam Globe Valve Material:
* ASTM A105
A182 F304, F304L, F316, F316L
F51, F11, F22
LF2
2. Steam Globe Valve Pressure rating and size:
* API, ANSI, ASME, MSS, BS, DIN, JIS
* 150#~2500# : 1/4"~3"
3. Steam Globe Valve Features:
* Design - API 607
* Face to Face & End to End - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ISO7005-1/ API 605/ BS 3293/ DIN
* Butt-Weld Ends - ASME B 16.25
* Socket-weld end: ASME B 16.11
* Screwed end: ASME B 1.20.1
* Fire Safe - API 607/ API 6FA
* Test - API 598
4. Steam Globe Valve Applications:
* Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.
5. Steam Globe Valve Structure:
* Y type, Straight type
* Bonnet : bolt and welded bonnet, pressure seal
* Full bore ( FB ) or reduced bore ( RB )
6. Steam Globe Valve Temperature rating:
* -45°C - + 650 °C or above
7. Steam Globe Valve Operators and option:
* Pneumatic / Electric/ Worm Gear/ Locking Device/ Lever etc.
8. Steam Globe Valve CERTIFICATES :
* API 6D, API 6FA, CE, ISO 9001
9. Steam Globe Valve The main material to choose from :
Parts | Material |
| Body&Bonnet |
LF2,A105,A105N,F304,F304L,F316,F316L,F11,F22,F51 |
Disc | F304,F316,LF2,A105,A105+ENP,LF2+ENP |
| Stem | F6a,304,316 |
| Seat | A105,F304,F316, STL |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
