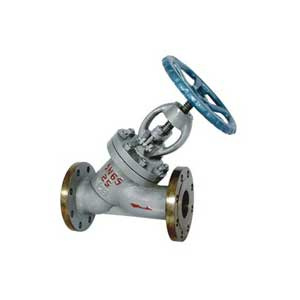

Features of Y globe valve:
1) Standards:
A) Design&Manufacture: API 602, BS 5352, ASME B16.34
B) Face to Face: MSS SP-84
C) Connection End: ASME B2.1, ASME B16.11
D) Test and Inspection: API598
2) Sizes: 1/2" - 2" or DN12 - DN50
3) Pressure Rating: Class150 - Class1500 or PN16 - PN250
4) Material: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
5) Operated by: Handwheel
Quality First and Reputation Uppermost!
Pressure | 1.6MPa | 2.5MPa | 4.0MPa |
| Shell Test | 2.4MPa | 3.8Mpa | 6.0MPa |
| Seal Test Water | 1.8MPa | 2.8MPa | 4.4MPa |
| Seal Test Air | 0.6MPa |
| Temperature | (-)20 - 425ºC |
| Medium | W.O.G |
| 1.Body | GG GS-C25 SS304 SS316 | 8.Gland | 25#,F304,F316 |
| 2.Disc | C.C+13Cr SS304 SS316 | 9.Cap | 25# |
| 3.Pin | F304 F316 | 10.Gland | 13Cr,304,316 |
| 4.Stem | C.C+13Cr SS304 SS316 | 11.Bolt | B7,B8,B8M |
| 5.Bellows | F304 F316 | 12.Nut | 2H,A194-8,8M |
| 6.Bonnet | GG GS-C25 SS304 SS316 | 13.Gasket | Graphite,PTFE |
| 7.Packing | Graphite,PTFE | ------- | ------- |
DN | PN16 | Weight(KG) | PN25 | Weight(KG) |
| L | D | W | N- Φ | H | L | D | W | N- Φ | H |
| 15 | 130 | 95 | 120 | 4 × 14 | 185 | 4.0 | 130 | 95 | 120 | 4 × 14 | 185 | 4.0 |
| 20 | 150 | 105 | 120 | 4 × 14 | 185 | 4.5 | 150 | 105 | 120 | 4 × 14 | 185 | 4.5 |
| 25 | 160 | 115 | 120 | 4 × 18 | 195 | 5.0 | 160 | 115 | 120 | 4 × 18 | 195 | 5.0 |
| 32 | 180 | 140 | 140 | 4 × 18 | 225 | 7.0 | 180 | 140 | 140 | 4 × 18 | 225 | 7.5 |
| 40 | 200 | 150 | 160 | 4 × 18 | 230 | 9.0 | 200 | 150 | 160 | 4 × 18 | 230 | 9.5 |
| 50 | 230 | 165 | 180 | 4 × 18 | 235 | 12 | 230 | 165 | 180 | 4 × 18 | 235 | 12.5 |
| 65 | 290 | 185 | 180 | 8 × 18 | 250 | 18 | 290 | 185 | 180 | 8 × 18 | 250 | 19 |
| 80 | 310 | 200 | 200 | 8 × 18 | 270 | 23 | 310 | 200 | 200 | 8 × 18 | 270 | 24 |
| 100 | 350 | 220 | 250 | 8 × 18 | 345 | 41 | 350 | 235 | 250 | 8×22 | 345 | 43 |
| 125 | 400 | 250 | 300 | 8 × 18 | 380 | 54 | 400 | 270 | 300 | 8×26 | 380 | 57 |
| 150 | 480 | 285 | 300 | 8 × 18 | 400 | 90 | 480 | 300 | 300 | 8×26 | 400 | 97 |
| 200 | 600 | 340 | 400 | 8 × 18 | 585 | 145 | 600 | 360 | 400 | 12×26 | 585 | 150
|
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
