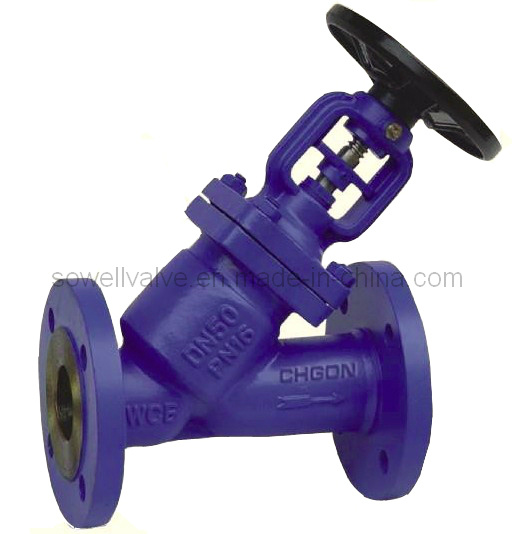

Y type globe valve, oblique globe valve, y pattern globe valve, bolted bonnet, flanged ends, manual operation, made of cast steels.
Y type globe valve, oblique globe valve, y pattern globe valve:
Design & manufacture standard: ANSI/ASME B16.34, BS1873.
Face to face dimensions: ANSI/ASME B16.10.
Flange connection: ANSI/ASME B16.5 for NPS24, ASME B16.47A/MSS SP-44 for NPS>24.
Butt-welding end dimensions: ANSI/ASME B16.25.
Inspection & test standard: API598.
Pressure: 150Lb, 300Lb, 600Lb, 900Lb or PN10~PN160 or JIS 10K ~ JIS 40K.
Nominal diameters: 1 1/2~ 24 or DN40~DN600.
Major materials: WCB, WC1, WC6, WC9, LCC, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc.
Driving styles: Manual/bevel gear/electric/pneumatic, etc.
|
NPS |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
L |
98 |
111 |
120 |
140 |
140 |
170 |
|
H(open) |
175 |
215 |
254 |
305 |
305 |
365 |
|
W |
100 |
125 |
160 |
160 |
180 |
200 |
|
weights |
5 |
6.3 |
7.6 |
9.8 |
13.8 |
14.0 |
