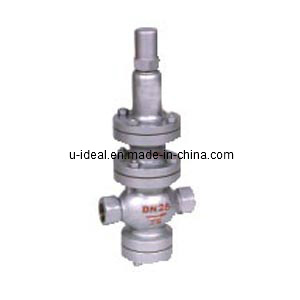

Home Valve Products Y13h Female Screw Connecting Adjustable Pressure Reducing Valve for Steam- Piloted Piston Type Pressure Reducing Valve
Y13h Female Screw Connecting Adjustable Pressure Reducing Valve for Steam- Piloted Piston Type Pressure Reducing Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Y13H female screw connecting adjustable pressure reducing valve for steam- piloted piston type pressure reducing valve
Structure:
The Tianjin U-ideal Instrument supplied pressure reducing valve belongs to the piloted piston type pressure reducing valve which Consists of main valve and pilot valve two parts. The main valve is mainly composed of valve seat, main valve, piston, cylinder liner, spring and other parts. Pilot valve is mainly composed of the seat, disc, diaphragm, spring, adjusting spring and other parts.
Set the downstream pressure by adjusting the spring pressure. The diaphragm senses the outlet pressure changes. Through pilot valve adjustment, the reducing valve keeps downstream pressure constant by reducing it to desired pressure, the desired pressure can be set according to the needs. The downstream pressure keeps constant and won't change by the upstream pressure changing or upstream flow rate changing. Mainly used for steam piping, as pressure reducing and sustaining valve.
Reducing valve; Pressure reducing and sustaining valve
Definition:
The pressure reducing valve is a pressure control valve which with throttle method make the outlet (downstream) pressure lower than the inlet (upstream) pressure, and keep the downstream pressure constant by reducing it to desired pressure, the desired pressure can be set according to the needs. The downstream pressure keeps constant and won't change by the upstream pressure changing or upstream flow rate changing.
Analyses them from the fluid mechanics point, the pressure reducing valve is a throttling element which local resistance is changeable. The reducing valve by changing the throttling area, change the kinetic energy of the flow velocity and fluid, produced different pressure loss, so as to achieve the goal of reducing pressure. And then through the adjustment of the control and regulation system, make the valve downstream pressure fluctuations and spring force keep equilibrium, the valve downstream pressure keep constant (no change or change within the error tolerances).
Tianjin U-ideal Instrument Co. Have Many different kinds of pressure reducing valve, such as: The piloted piston type pressure reducing valve, diaphragm pressure reducing valve, bellows type pressure reducing valve, proportional pressure reducing valve, self-reliance type pressure reducing valve, direct acting piston type pressure reducing valve, back pressure regulator, etc. They apply respectively to different working medium.
| Prod Model: |
Y13H ZZYP ZZYN ZZYM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Steam |
| Set Pressure: |
Adjustable |
| Valve Type: |
Pilot Valve |
| Control Valve Type: |
Pressure Reducing and Sustaining |
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
