It is pilot operated, its sealing materials is PTFE, has reliable performance, long service life!
Specifications
High pressure solenoid valve
1)HIGH PRESSURE,
2)STAINLESS STEEL BODY
-- Media: high pressure Gas, fluid, Oil (below 20cst)
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Temperature: -5 ~130° C
--Mode of action:direct lift type/ pilot operated type
--Body material: Stainless steel
-- Sealing material: PTFE
--Protection class: IP65

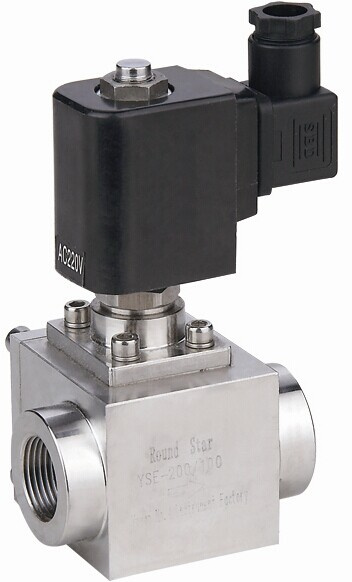

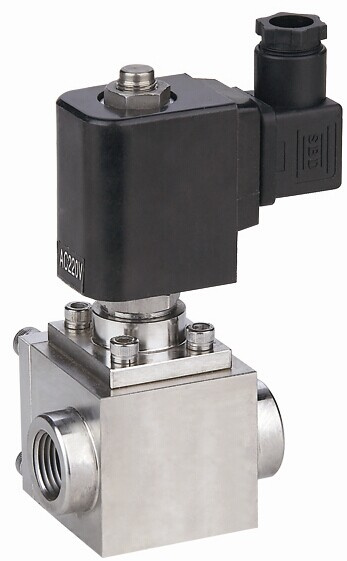

High pressure solenoid valve
PICTURES
YSE-10
YSE-20
|
MODEL |
YSE-010 |
YSE-015 |
YSE-020 |
YSE-025 |
YSE-030 |
YSE-100 |
YSE-150 |
YSE-200 |
YSE-250 |
|
ORIFICE SIZE |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
10 |
15 |
20 |
25 |
|
G CONNECTOIN |
G1/4 or G3/8 |
G3/8 G1/2 |
G1/2 |
G3/4 |
G1 |
|
OPERATION TYPE |
DIRECT ACTING |
PILOT operate type |
|
MEDIUM |
LIQUID, GAS |
LIQUID, GAS |
|
TEMP. |
-5~130° C |
|
Pressure.(Mpa) |
AC 0~100 DC 0~80 |
AC 0~80 DC 0~60 |
AC 0~60 DC 0~50 |
AC 6~160 DC 6~150 |
AC 6~160 DC 6~130 |
|
LENGTH MM |
44 |
44 |
44 |
44 |
44 |
60 |
70 |
80 |
90 |
|
HEIGHT MM |
98 |
98 |
98 |
98 |
98 |
125 |
138 |
144 |
154 |
|
POWER V |
AC220/110V, 30VA; DC24V 12V, 18W |
