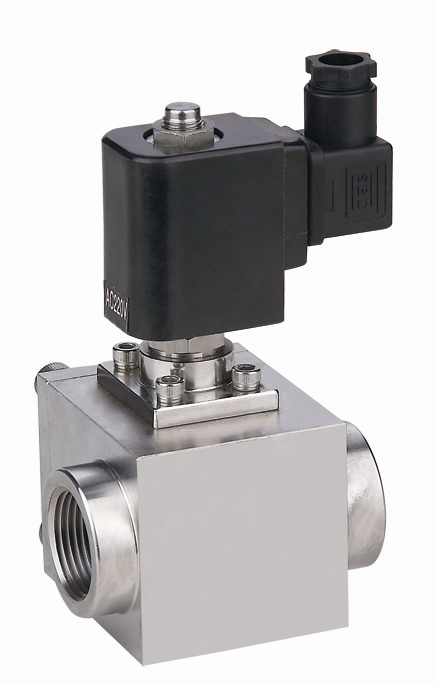

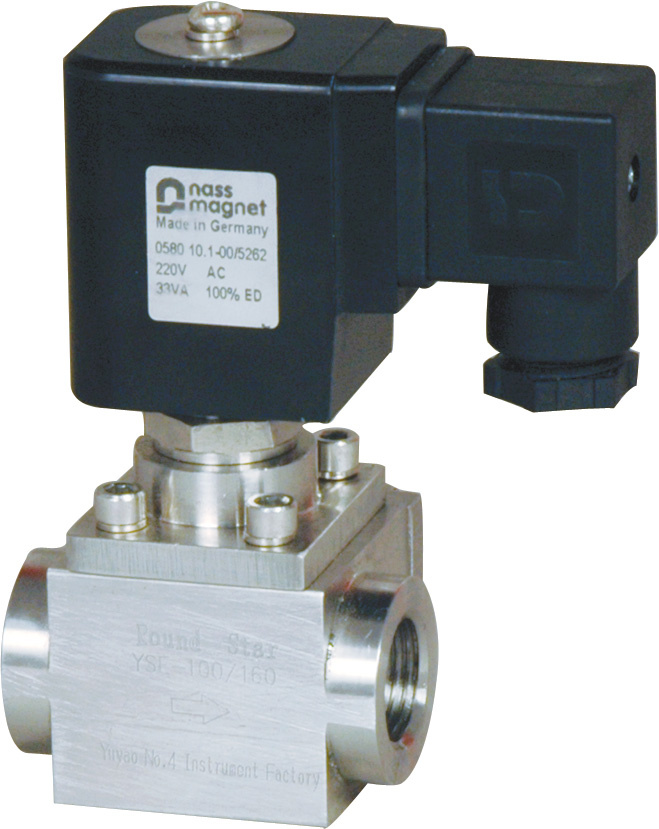

Ss High Pressure Solenoid Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
Technical parameters:-working medium: High pressure liquid,gas,light oil--Medium temperature:-5~130ºC--Working pressure:0~160bar(see specification parameter table)--voltage:AC220V/50HZ/DC24V/AC110V/50HZ--body material: stainless steel SS304--Sealing material: PTFE Matches:--Thread interface: NPT thread, RC thread--With the LED indicator light connector--With Germany Nass coil
|
Products MODE |
Thread
G |
ORIFICE (mm) |
CV(mm) |
L(mm) |
H(MM) |
Working Pressure(bar) |
|
AC |
DC |
|
YSE-1 |
1/4" OR 3/8" |
1 |
0.04 |
44 |
98 |
0-250 |
0-200 |
|
YSE-1.5 |
1.5 |
0.08 |
44 |
98 |
0-160 |
0-120 |
|
YSE-2 |
2 |
0.15 |
44 |
98 |
0-130 |
0-80 |
|
YSE-2.5 |
2.5 |
0.2 |
44 |
98 |
0-80 |
0-60 |
|
YSE-3 |
3 |
0.25 |
44 |
98 |
0-60 |
0-40 |
|
YSE-10 |
3/8" |
10 |
3.5 |
60 |
125 |
6-160 |
6-120 |
|
YSE-15 |
1/2" |
15 |
4.7 |
70 |
138 |
6-160 |
6-120 |
|
YSE-20 |
3/4" |
20 |
7 |
80 |
144 |
6-160 |
6-120 |
|
YSE-25 |
1" |
25 |
11 |
90 |
154 |
6-160 |
6-120 |
| Prod Model: |
YSE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1~25 |
| Coil: |
Can Choose Nass Coil |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.
Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
