Applicable Medium: Fluid, gas and oil (≤ 20cst) etc.
Medium Temperature: -5 ~ 180º C
Action Mode: Pilot-operated
Working Pressure: 0.5~50bar (under normally closed conditions)
Valve Material: Stainless steel (precision casting)
Seal Material: PTFE
Features

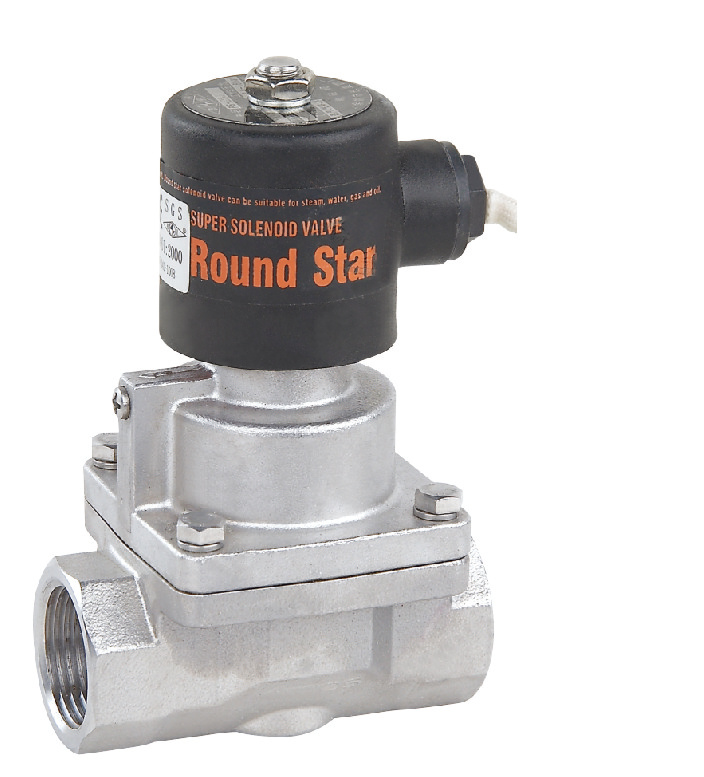

1. The YSP high pressure solenoid valve is compatible with various media including fluid, gas and oil (≤ 20cst).
2. It works with the pilot-operated action mode.
3. The stainless steel SUS304 is made into the valve.
4. With sophisticated structure and professional technique, it features stable performance and high reliability.
|
Model |
Connector G |
Diameter |
CV Value |
Length (mm) |
Height (mm) |
Working Pressure(bar) |
|
YSP-15 |
1/2 |
15 |
4.5 |
70 |
135 |
AC:0.5~50 DC:0.5~40 |
|
YSP-20 |
3/4 |
20 |
7.6 |
75 |
142 |
|
YSP-25 |
1 |
25 |
12 |
94 |
152 |
|
YSP-32 |
11/4 |
32 |
22 |
110 |
166 |
|
YSP-40 |
11/2 |
40 |
30 |
122 |
170 |
|
YSP-50 |
2 |
50 |
48 |
160 |
184 |
|
YSP-32F Stainless Flange |
2 |
32 |
22 |
140 |
218 |
|
YSP-40F Stainless Flange |
11/2 |
40 |
30 |
148 |
228 |
|
YSP-50F Stainless Flange |
2 |
50 |
48 |
182 |
243 |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

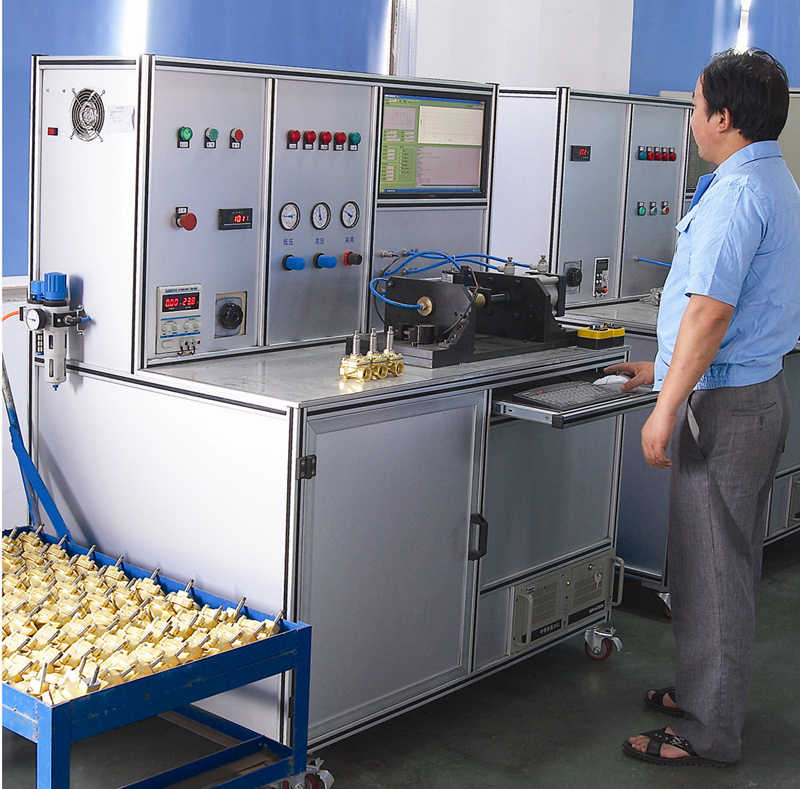

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
