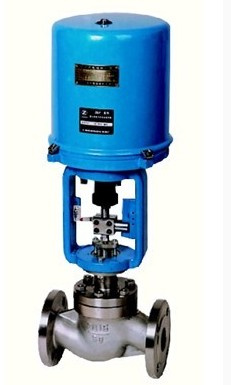

ZAZP Electric single-seat control valve
Electric single-seat control valve is driven by single-phase 220V power, receives 0~10mA DC signal, automatically controls the opening of valve, to continuously adjust pressure, temperature, flow, liquid level and other process parameters. Widely used in power, metallurgy, petroleum, chemical, light industry, food department and other automatic control systems
|
Nominal diameter DN(mm) |
3/4" |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
Rated flow coefficient
kv |
Single seat |
P |
0.08~0.8 |
1.2~5.0 |
8 |
12 |
20 |
32 |
50 |
80 |
120 |
200 |
280 |
450 |
|
|
|
Double seat |
N |
|
|
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
|
Sleeve |
M |
|
|
15 |
|
20 |
30 |
|
75 |
115 |
|
240 |
350 |
|
|
|
Nominal pressure (MPa) |
1.6 4.0 6.0 |
|
Travel (mm) |
10 |
16 |
25 |
40 |
60 |
100 |
|
Model of actuator |
DKZ-310/310C |
DKZ-410/410C/510/510C |
DKZ-510/510C |
|
Signal |
IItype 0-10mA DC IIItype 4-20mA DC |
|
Media temperature centigrade |
-40~230centigrade(general temperature ),Heat sink 230~450centigrade(Medium temperature),special order -100~600centigrade |
|
Flow characteristics |
Straight line, equal to percentage |
|
Adjustable range |
30:1 |
|
Power voltage |
220VAC 50~60Hz |
|
Action mode |
Power open(K)power off(B) |
|
Material of valve body |
Nominal pressure
(MPa) |
0.6 |
|
Low temperature :ZG1Cr18Ni9Ti |
|
1.6 |
General temperature :HT200 ZG230-450 |
|
4.0 |
|
Low temperature: ZG1Cr18Ni9Ti |
|
General temperature:ZG230-450, ZG1Cr18Ni9Ti |
|
Medium temperature:ZG230-450, ZG1Cr18Ni9Ti |
|
6.4 |
Low temperature:ZG1Cr18Ni9Ti |
|
General temperature:ZG230-450, ZG1Cr18Ni9Ti |
|
Medium temperature:ZG230-450, ZG1Cr18Ni9Ti |
|
Flange size |
Connection tube |
Cast steel complies to JB77-59,cast iron complies to JB79-59 |
|
Flange mode |
flange sealing is in accordance with JB77-59 |
|
Material of spool |
1Cr18Ni9Ti |
|
Upper cover |
General(general temperature),heat chip(medium temperature),low temperature |
