Model NO.: Q347F
Driving Mode: Manual, Gear, Electrical, Pneumatic
Function: Ball Valve
Connection Form: Flange
Channel: Straight Through Type
Structure: Trunnion Mounted Ball Valve
Type: Fixed Ball Valve
Material: Forged Steel A105, F316, Lf2
Application: Industrial Usage
Temperature: -29 ~ 150 C
Nominal Pressure: ANSI Class 150lb - 1500lb
Design Standard: API 6D
Face to Face Dimension: ANSI B 16.10 / API 6D
Materials: Forged Steel A105, F316, Lf2
Pressure Rating: Class 150lb, 300lb, 600lb, 900lb, 1500lb
Size: 2" to 48"
End Flange Dimension: ANSI B 16.5
Test Standard: API 598
Connection Type: Flanged End RF
Export Markets: Global
Product Description

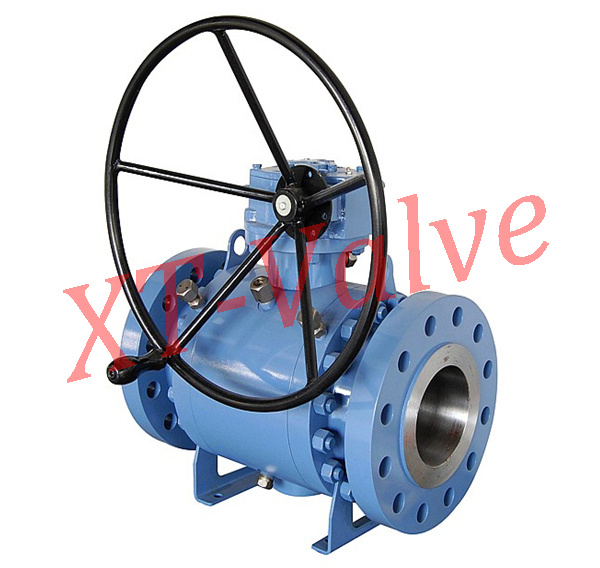

3-PC Forged Steel Trunnion Mounted Ball Valve - Product Features:
CLASS 150~1500 FORGED STEEL TRUNNION BALL VALVE
Bolted cover or welded cover, three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A105N, A182 F304, A182 F316, A182 F304L, A182 F316L
Standards compliance
Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D
|
No. |
Part |
Material |
|
1 |
Bonnet |
ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51,F60 |
|
2 |
Seat |
PTFE RPTFE PEEK PPL |
|
3 |
Body Gasket |
PTFE Graphite |
|
4 |
Thrust-Washer |
A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
|
5 |
Stem |
Stainless Steel |
|
6 |
Stop Nut |
Carbon Steel |
|
7 |
Spring Gasket |
A216-WCB 10256+Cr |
|
8 |
Lever |
ASTM A182-F304,F316 |
|
9 |
Backup Ring |
1015+Cr Carbon Steel+Cr |
|
10 |
Limited Plate |
Stainless Steel |
|
11 |
Positioning pin |
PTFE Graphite |
|
12 |
Packing |
PTFE |
|
13 |
"O"-Ring |
NBR Viton |
|
14 |
Antistatic Spring |
Stainless Steel SS316 |
|
15 |
Ball |
ASTM A105+ENP ASTM A182-F6,F304,F316,F316L,F51 |
|
16 |
Body |
ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51 |
|
17 |
Stud |
ASTM A193-B7,B8M,B8,B8M |
|
18 |
Nut |
ASTM A194-2H,2HM,8,8M |
