Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dn100: |
Dn3000 |
Connection Form: |
Flange |
Structure: |
Double-Eccentric Sealing |
Seal Form: |
Force Sealed |
Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
Working Temperature: |
Medium Temperature (',120??C
|
Material Of Seal Surface: |
Metal Hard Sealed |
Application: |
Water Industrial Usage |

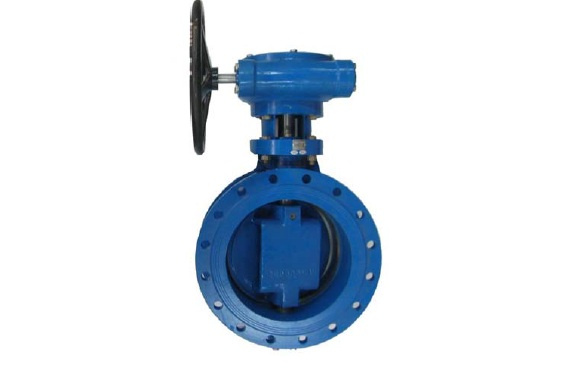

Product Description
Main characteristics
? Vertical and horizontal mounting of the shaft.
? Two parts shaft with guide bushes
? High power pin connection between the shaft and the disc.
? The eccentric sealing structure, reliable sealing performance.
? Ductile iron, carbon steel body and disc.
? Body epoxy coated 80μm colour blue EPOXY
? Secondary tightness.
? Easy maintenance. Interchangeable disc and liner .
? Wide choice of actuations
? Extension type can be expended freely, and be fixed for the limitation according to working
condition.
Applications
? Water distribution and water treatment, Most of the fluids of general services.
? Industrial applications such as: metallurgical, mining, paper-making, ship-building
and mechanical, food industry.
? For special applications, especially for particularly difficult media, contact our technical team.
Specification
Working pressure range: 6 bar, 10 bar,16 bar, 25 bar, 40bar
Working temperature: -30ºC~200ºC
Working medium: water, sewage, oil, gas, steam, petrochemical and other
corrosive fuild
Operating type: worm gear, electric, pneumatic actuator
Manufacture standard: EN593
Face to face dimension: PN6/10/16: ISO5752-13(short body series)
Flange dimension: DIN 2501
Test standard: EN12266
