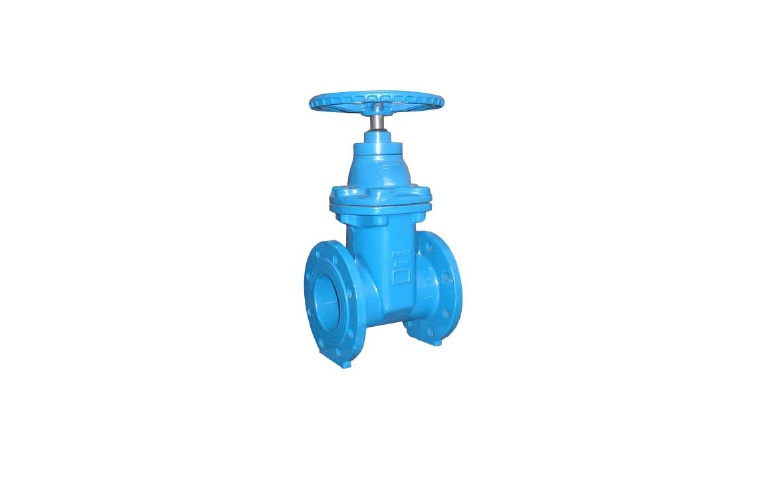

Gate Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dn50: |
Dn600 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description
Technical description
？ Design standard: BS5136
？ Test standard: EN12266-1
？ Flange standard: ISO7005-2-1998
？ working pressure: PN16
？ Max. temperature: 80°C
？ Work medium: drinking water,sewage, oil, natural gas, coal gas
？ Coating: Epoxy minimum 250μm, Blue colour
Application and features
？ Application: water , sewage and gas
？ Low friction wedge guiding rails
-low operating torque
-no damage to rubber and epoxy
-no corrosion
-replaceable
？ Clockwise closing
？ Dimension: DN50 - DN600
• Goal statement
To be a China total sourcing solution provider for overseas customer
• Materials supplied included:
Alloy steel, stainless steel, hastelloy, grey iron, nodular cast iron, bronze, brass, aluminum and aluminum alloy.
• Products included:
Machined castings for valves and pumps industries: Bodies, covers, guides, bonnets, discs, stems and shafts and kinds of completed valves and pumps.
• Processes utilized include:
Lost wax castings, lost foam castings, resin sand castings, green sand castings, aluminum and zinc die castings, multiple machining processes
• Goal statement
To be a China total sourcing solution provider for overseas customer
• Materials supplied included:
Alloy steel, stainless steel, hastelloy, grey iron, nodular cast iron, bronze, brass, aluminum and aluminum alloy.
• Products included:
Machined castings for valves and pumps industries: Bodies, covers, guides, bonnets, discs, stems and shafts and kinds of completed valves and pumps.
• Processes utilized include:
Lost wax castings, lost foam castings, resin sand castings, green sand castings, aluminum and zinc die castings, multiple machining processes
