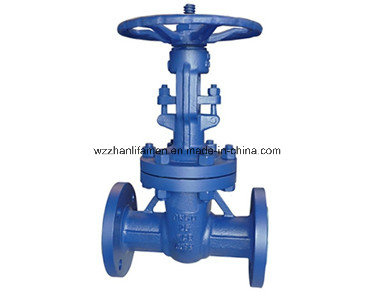

DIN Cast Steel Gate Valve F7 (Z41H-F7)
Price: |
US $ 999.99/Piece |
Trade Terms: |
FOB |
Min Order: |
10/Piece |
Pay Type: |
L/C |
Prod Model: |
Z41H-F7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Pressure: |
1.6MPa, 2.5MPa,4.0MPa,6.4MPa,100MPa |
Nominal Diameter: |
1-1/2''-28'' |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Application: |
Household Usage |
Material: |
Carbon Steel, Stainless Steel, Steel |
Actuator: |
Manual, Electric, Pneumatic etc. |
Product Description
Belows are the details of the DIN Cast Steel Gate Valve F7 made by our company:
1. Summarize
(1) Name: DIN Gate Valve F7
(2) Model: Z41H-F7
(3) Size Range: 1-1/2" - 24"
(4) Pressure/Class: 1.6Mpa, 2.5Mpa, 4.0MPa, 6.4MPa
(5) Materials: Cast Iron, Cast Steel, Stainless Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20º C - 425º C
2. Technical Specifications
(1)Design Standard: DIN EN 12288-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003

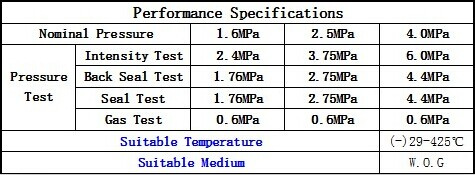

3. Performance Specifications
![](/proimages/44f3j00lQZtNLiBCRqO/din-cast-steel-gate-valve-f7-z41h-f7-.jpg)
4. Main Parts and Materials
![](/proimages/44f3j00WQjtOliUgfoy/din-cast-steel-gate-valve-f7-z41h-f7-.jpg)

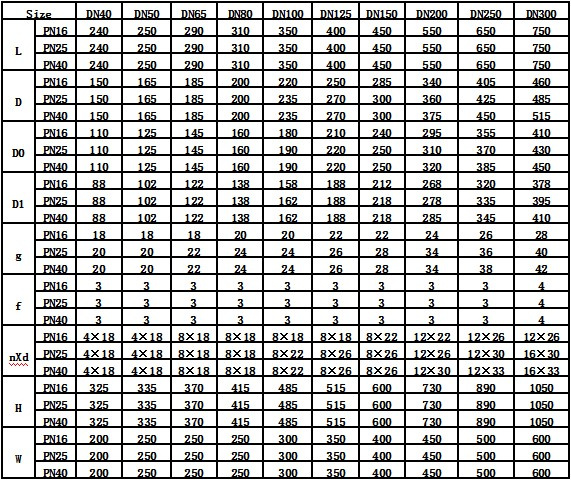

5. Main Sizes and Dimensions(Partly)
![](/proimages/44f3j00ltZTnkhmffoF/din-cast-steel-gate-valve-f7-z41h-f7-.jpg)
If this product interests you, please feel free to contact with us!
