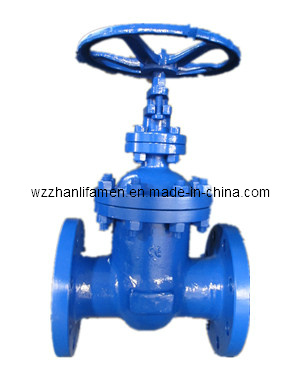

DIN Cast Steel Gate Valve F5 (Z41H-F5)
| Price: |
US $ 999.99/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Z41H-F5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Pressure: |
1.6mpa , 2.5mpa.4.0mpa |
| Nominal Diameter: |
1-1/2''-12'' |
| Connection Type: |
Flange |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Application: |
Household Usage |
| Material: |
Carbon Steel, Stainless Steel, Steel |
| Thread Position Of Valve Rod: |
Outside&Inside Gate Valve |
Product Description
Belows are the details of DIN Gate Valve F5 made by our company:
1. Summarize
(1) Name: DIN Gate Valve F5(Rising Stem and Non-rising Stem)
(2) Model: Z41H-F5 / Z45H-F5
(3) Size Range: 1-1/2" - 24"
(4) Pressure/Class: 1.6Mpa, 2.5MPa, 4.0MPa
(5) Materials: Cast Iron, Cast Steel, Stainless Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20ºC - 425ºC
2. Technical Specifications
(1)Design Standard: DIN EN 12288-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003

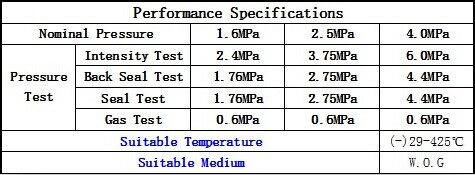

3. Performace Specifications

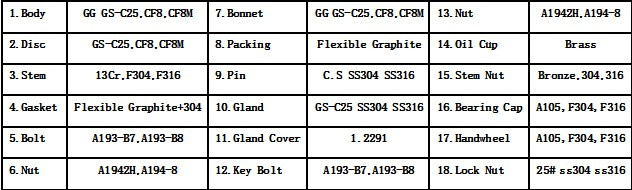

4. Main Parts and Materials

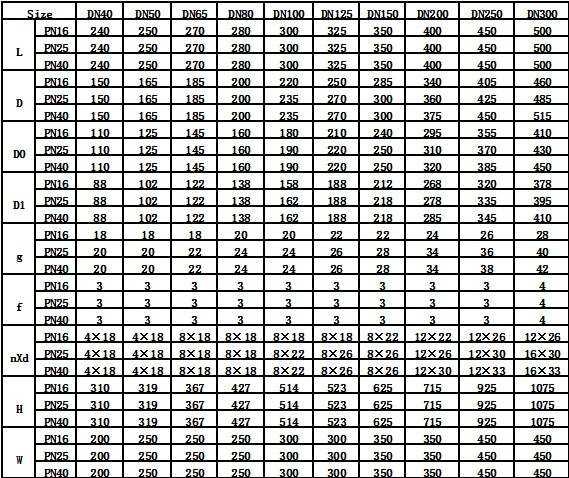

5. Main Sizes and Dimensions(Partly)
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
|
