| Prod Model: |
J61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8"-2" |
| Pressure: |
1500lb-2500lb |
| Seal: |
Pressure Seal |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Application: |
Bellows Globe Valve |
| Sealing Form: |
Pressure Sealing |
Product Description
Product Description
Sepcification

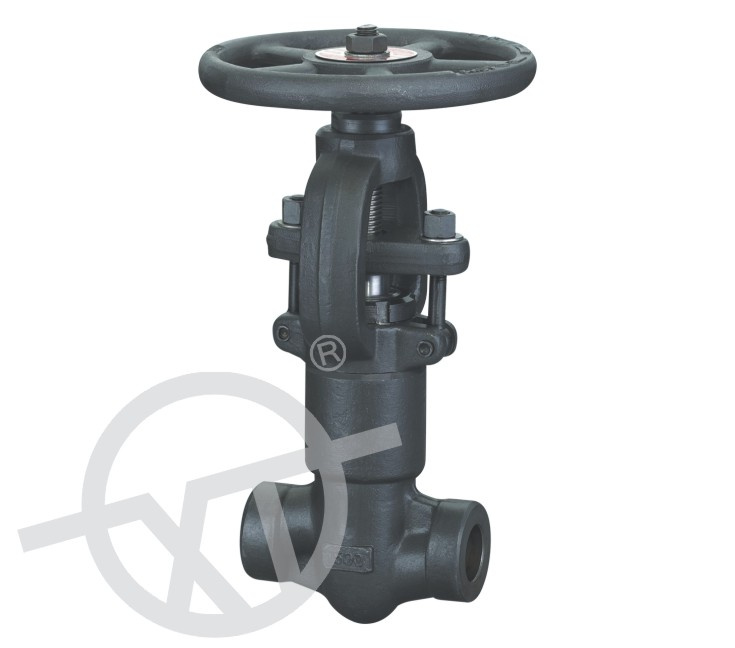

Pressure Seal Bonnet, with a threaded and pressure seal bonnet joint.
Construction is as follows:
. Full Port or Standard Port
. Outside Screw and Yoke (OS&Y)
. Two piece self aligning packing gland
. Integral backseat
. Loose solid disc
. Socket Weld Ends to ASME B16.11
. Screwed Ends (NPT) to ANSI/ASME B1.20.1
Materials
Forged carbon steel A105
Low alloy steel ASTM A182 gr. F1, F11 and F22
Medium alloy steels ASTM A182 gr. F5, F9, and F91
Stainless steel ASTM A 182 gr. F304/304L, F316/316L, F321, F347, F348
Duplex Stainless Steel ASTM A 182 gr. F44 (6Mo), F51, F53 or F55 (superduplex)
High nickel molybdenum alloys (alloy 20, inconel, monel)
Dimensional Range
NPS: 1/4'' - 2"
Pressure rating: ANSI 150 - 2500#
|
Pressure |
Class 600 ~ Class 2500 |
|
Size |
3/8"-2" |
|
Operation |
Manual, Gear, Pneumatic,etc. |
