| Prod Model: |
Q41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Forged Floating Highly Quality |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Flexible Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
| Driving Mode: |
Bare |
| Function: |
Control |
| Nominal Pressure: |
150#-1500# |
Product Description
Product Description

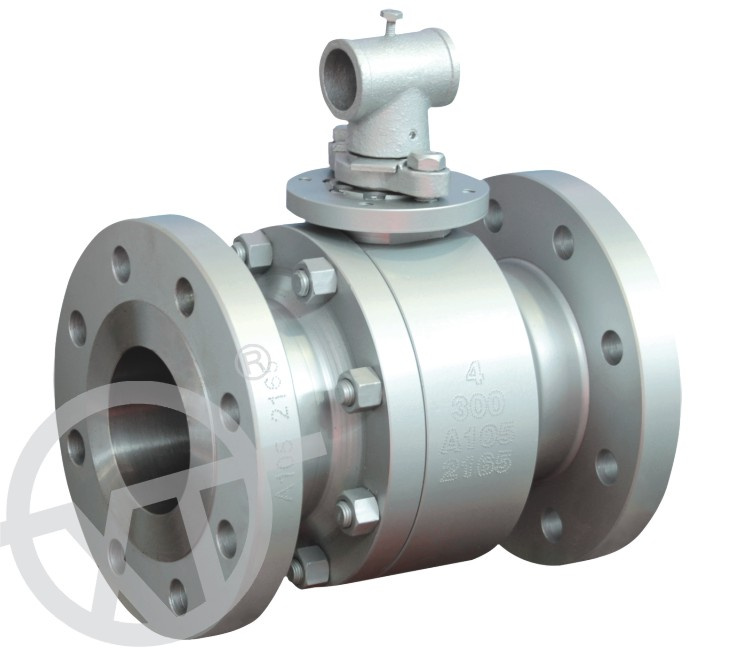

API 6D Cast Steel 2-PC Floating Ball Valve:
1. Size of 1/2 inch to 10 inch.
2. Pressure from class 150 to class 1500.
3. End connections by RF/RTJ/butt-weld, socked weld.
4. Designed and tested according to API 598/6D, 2-piece bolted body design.
5. Fire safe to API-607, anti-static and NACE MR-01-75.
6. Material: WCB/A105, CF8/F304, CF8M/F316, LCB/LF3 etc.
7. Full bore and reduced bore
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
|
No. |
Part |
Material |
|
1 |
Bonnet |
ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51,F60 |
|
2 |
Seat |
PTFE RPTFE PEEK PPL |
|
3 |
Body Gasket |
PTFE Graphite |
|
4 |
Thrust-Washer |
A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
|
5 |
Stem |
Stainless Steel |
|
6 |
Stop Nut |
Carbon Steel |
|
7 |
Spring Gasket |
A216-WCB 10256+Cr |
|
8 |
Lever |
ASTM A182-F304,F316 |
|
9 |
Backup Ring |
1015+Cr Carbon Steel+Cr |
|
10 |
Limited Plate |
Stainless Steel |
|
11 |
Positioning pin |
PTFE Graphite |
|
12 |
Packing |
PTFE |
|
13 |
"O"-Ring |
NBR Viton |
|
14 |
Antistatic Spring |
Stainless Steel SS316 |
|
15 |
Ball |
ASTM A105+ENP ASTM A182-F6,F304,F316,F316L,F51 |
|
16 |
Body |
ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51 |
|
17 |
Stud |
ASTM A193-B7,B8M,B8,B8M |
|
18 |
Nut |
ASTM A194-2H,2HM,8,8M |
