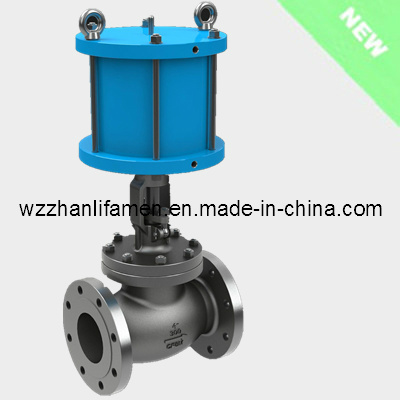

Pneumatic Operated Globe Valve J641h (API, DIN, GB)
Price: |
US $ 999.99/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
J641H/W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nominal Pressure: |
150lb, 300lb, 600lb |
Nominal Diameter: |
2''-18'' |
Connection Form: |
Flange |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Household Usage |
Material: |
Carbon Steel, Stainless Steel, Steel |
Product Description
Belows are the details of Pneumatic Operated Globe Valve made by our company:1. Summarize
(1) Name: API Pneumatic Operated Globe Valve
(2) Model: J641H/W
(3) Size Range: 1-1/2" - 36"
(4) Pressure/Class: 150 - 1500LB
(5) Materials: Cast Iron, Cast Steel, Stainless Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20ºC - 425ºC (8) Standard: DIN, API, GBHere we take API Pneumatic Operated Gate Valve for example. For the others' data, please contact us.2. Technical Specifications:
(1)Design Standard: API 600-2009
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009

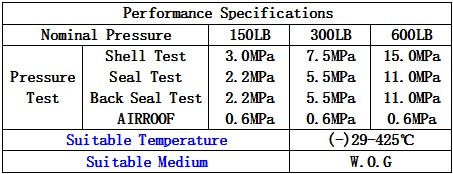

2. Performance Specifications:

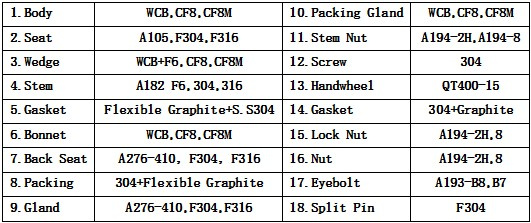

3. Main Parts and Materials:

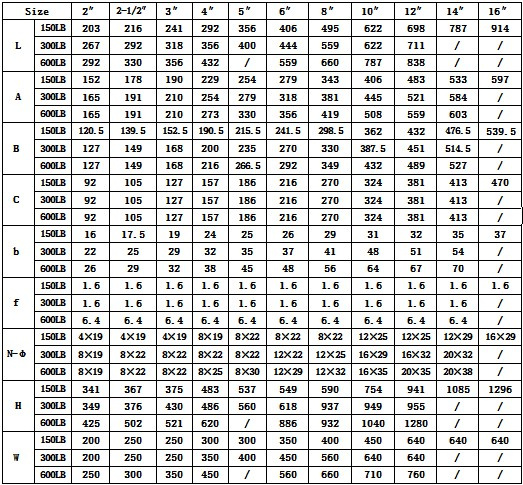

4. Main Sizes and Dimensions:If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
