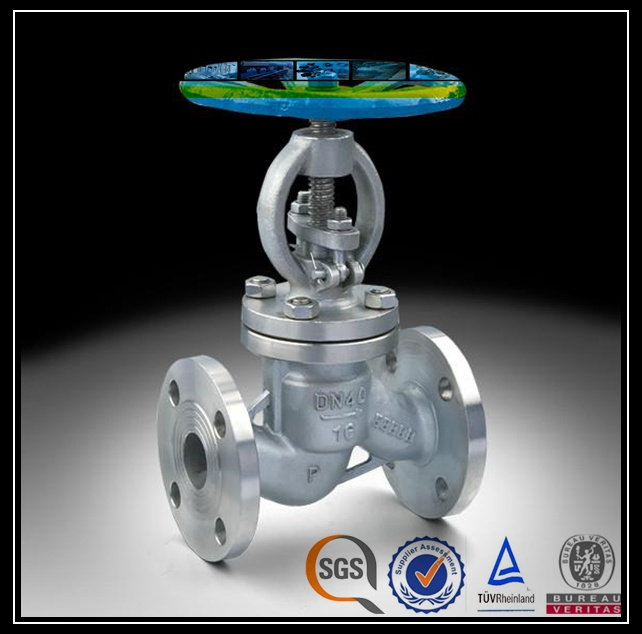

1/2/3/4 PC Pn16 Wcb Cast Steel Stop Valve
| Price: |
US $ 5-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Material:A351-CF8,CF8M,CF3M,316,304;A216-WCB
Size:
Class125:2 INCH~16 INCH
Class150:1/2 INCH~14 INCH
Class300:1/2 INCH~14 INCH
Class600:1/2 INCH~8 INCH
Industry Standards
Design and manufacture | ANSI B16.34 |
| Face-to-Face | ANSI B16.10 |
| Flange Dimensions | ANSI B16.1/ANSI B16.5 |
| Weld end | ANSI B16.25 |
| Testing | API 598 |
Test pressure
Item/Class | 125 | 150 | 250 | 300 | 600 | 900 | 1500 | 2500 |
| Shell(hydrostatic) | 350 | 450 | 875 | 1125 | 2250 | 3250 | 5400 | 9000 |
| Seat(hydrostatic) | 230 | 320 | 620 | 825 | 1650 | 2400 | 4000 | 6600 |
| Seat(air) | 80 | 80 |
| 80 | 80 | 80 | 80 | 80 |
Material of main parts(cast steel):
Parts/Group | LCB | WCB | CF8 | CF8M |
| Body &Bonnet | LCB | A216-WCB | A351-CF8 | A351-CF8M |
| Disc | A182-F304 | A105-1025 | A182-F304 | A182-F316 |
| Seat | A182-F304 | A105-1025 | A182-F304 | A182-F316 |
| Sealing Face | 18-8/18-8,18-8/STL,STL/STL | 13Cr/13Cr,13 Cr/STL,STL/STL | 18-8/18-8,18-8/STL,STL/STL |
| Stem | A182-F304 | A182-F6a | A182-F304 | A182-F316 |
| Stem Nut | A439-D2 |
| Bolt/Nut | A193-B8/A194-8 | A193-B7/A194-2H | A193-B8/A194-8 |
| Gasket | Spiral Wounded/Soft Steel |
| Packing | Flexible Graphite |
| Handwheel | A216-wcb/A47-32510 |
Working Temperature:
LCB:-50 ° F~ 653°F
WCB :-20 ° F~ 800°F
CF8:-272 ° F-1000 ° F(Flanged end);~ 272° F-1472 ° F(Weld end)
CF8M:-272 ° F-1000 ° F(Flanged end);~ 272° F-1472 ° F(Weld end)
Application: PMilk ,Beer ,Drinks Machinery ,Food Processing,Medicine Machinery, Water Treatment, Chemical, ect.
Advantages:
1. The fastest delivery
2. The lowest price
3. Most comprehensive standards and materials for your choice.
4.100% export.
5. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
| Prod Model: |
EL-SV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO,TUV,Ad |
| Delivery Time: |
15-30 Days After Down Payment |
| Standard: |
JIS |
| Sealing Form: |
Bellows Globe Valve |
| Application: |
Bellows Globe Valve |
