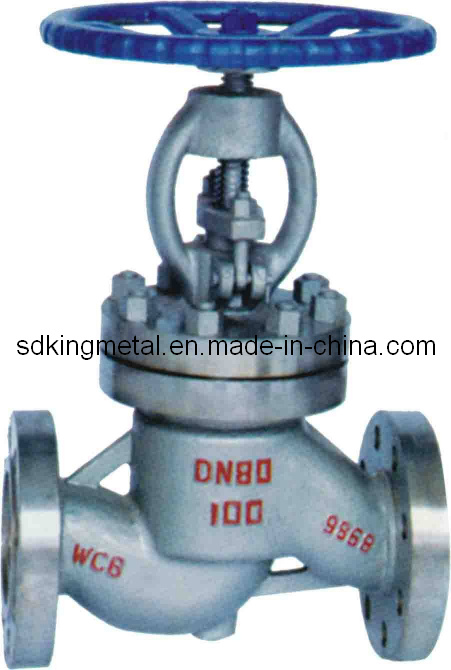

150lbs API Cast Steel Globe Valves
| Price: |
US $ 12/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
Cast steel valves
Standard:ANSI MSS (also available for DIN,BS,JIS)
Certificate:ISO,API
Pressure rate:150LBS,300LBS,900LBS
Materials:A216WCB,A217WC6,A315CF8,A351CF8M,
A351CF3,A315CF3M
Design and manufacture:API 6D and API600
Inspection & Test:API 6D and API598
Face to face:API 6D and ANSI B16.5
Operation:handwheel and gear operation.
Size:1/2"-36"
Packing in poly-wooden cases
Payment by LC,TT,DP
Used for water,oil,gas etc
|
Material of main parts |
|
Part name |
Material |
|
Body bonnet |
Cast steel |
|
Disc |
Cast steel, stainless steel |
|
Stem |
Carbon steel |
|
Yoke nut |
Bronze |
|
Wheel |
Cast iron |
|
Performance data |
|
Type |
Nomial pressure (MPa) |
Testing |
Working temperature |
Suitable |
|
Strength(water)(Mpa) |
Sealing(water)(Mpa) |
|
J41H-25 |
2.5 |
3.8 |
2.8 |
≤300°C |
Vapour,oil,water |
|
Outline and connection dimension |
|
Type |
Nomianal DN(mm) |
Dimensions(mm) |
|
L |
D |
D1 |
D2 |
b-f |
n-Φd |
H |
Φ |
|
J41H-25 |
25 |
160 |
115 |
85 |
65 |
16-3 |
4-14 |
270 |
152 |
|
32 |
180 |
140 |
100 |
76 |
18-3 |
4-18 |
290 |
152 |
|
40 |
200 |
150 |
110 |
85 |
18-3 |
4-18 |
325 |
197 |
|
50 |
230 |
165 |
125 |
100 |
20-3 |
4-18 |
355 |
267 |
|
65 |
290 |
185 |
145 |
120 |
22-3 |
8-18 |
405 |
267 |
|
80 |
310 |
200 |
160 |
135 |
24-3 |
8-18 |
435 |
290 |
|
100 |
350 |
235 |
190 |
160 |
24-3 |
8-22 |
485 |
290 |
| Prod Model: |
SDCV017 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-24 |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
Awwa Bs |
| Application: |
Oxygen Globe Valve |
