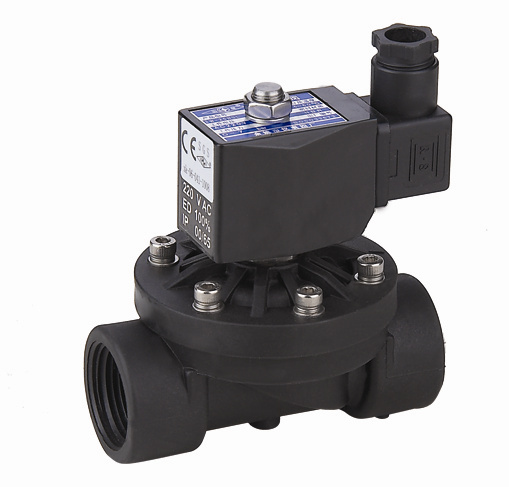

2 way NPT 1" IP 65 water Plastic solenoid valve
Valves available in normally closed and normally open constructions. Available in either AC or DC operated with plastic bodies/ stainless steel tube/ soft magnetic alloy core. Therefore the price is lower compared with that of brass and stainless steel.
-- Media: Water, Liquid
-- Pressure: Max 6 bar
--Temperature: 0 ÷ 50ºC
--Mode of action: Semi-direct lift type
--Body material: PA
-- Sealing material: NBR / Viton
--Protection class: IP65
--Function type: Normally Closed (N/C), Normally Open(N/O
We are China plastic solenoid valve manufacturer offer best plastic solenoid valve OEM, ODM, service
Model |
2WSL-15 |
2WSL-20 |
2WSL-25 |
NPT Connection |
1/2" |
3/4" |
1" |
Orifice Size |
mm |
15 |
20 |
25 |
Cv Value |
4.8 |
7.6 |
12 |
L |
mm |
7 6 |
80 |
107 |
H |
mm |
1 07 |
111 |
117 |
Power |
AC:220V~AC:230V/50-60HZ 22VA; DC24 18W; |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

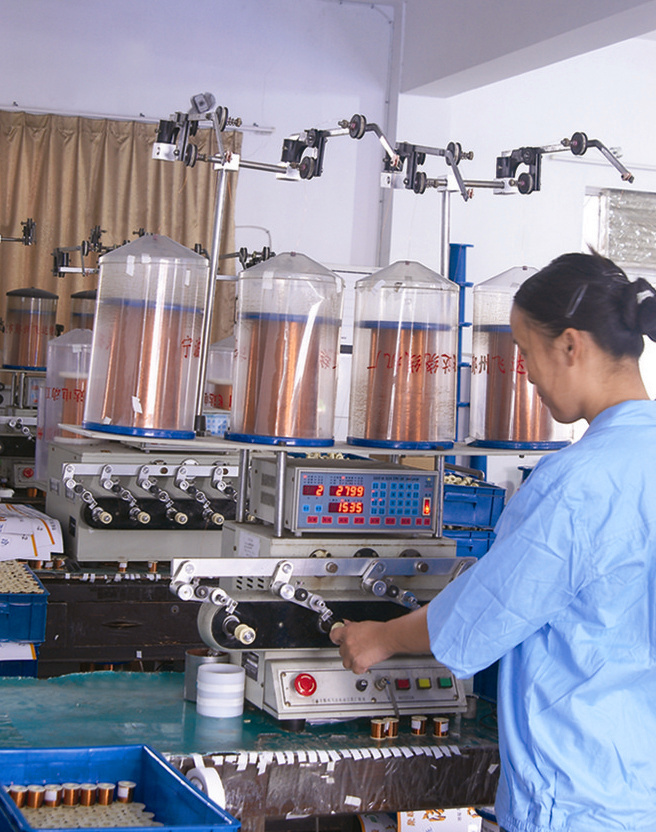

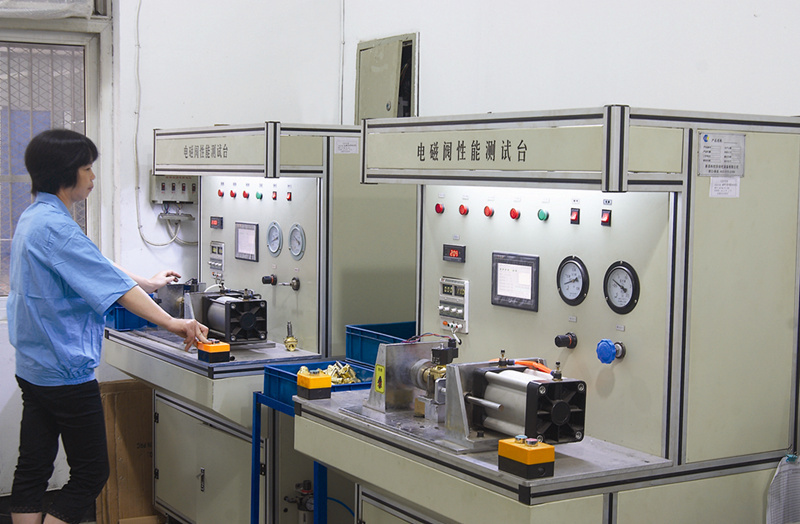

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
