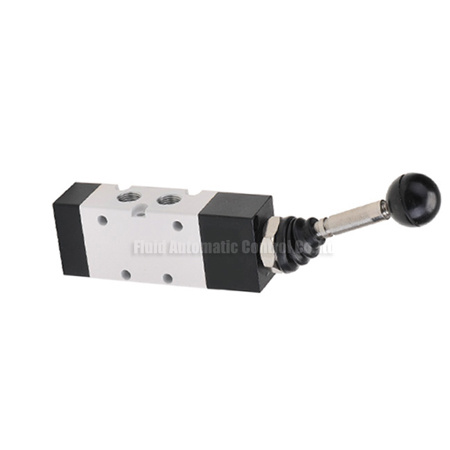

*HTV hand Toggle valve Metalwork interchangeable
*Two position Five Way,two position three way
*Port Size G1/8” G1/4”
*Smooth stroke travelling,Sensitive acting respond
*Multi-mounting position,easy for installation
*Stable design,long service life cycle
ORDERING CODE |
| HTV | 322N | 6 |
| Type | Function Type and Body Width | Port Size |
| HTV:METALWORK 70 Series Hand Toggle Valve | 322N: Two Position Three Way,Body Width 22mm | 6:G1/8" |
| 332N: Two Position Three Way,Body Width 25mm |
| 522N: Two Position Five Way,Body Width 22mm | 8:G1/4" |
| 532N: Two Position Five Way,Body Width 25mm |
| SPECIFICATION |
| Model no | HTV Series |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position Three Way Two Position-Five Way |
| Port Size | G1/8" G1/4" |
| Motion Pattern | Direct Acting |
| Working Pressure | 0~1.0MPa |
| Operating Temperature | –5~60ºC |
