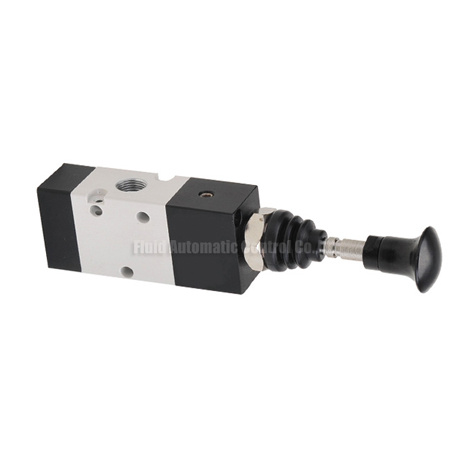

*HDV series Hand Draw Valve
*Aluminum Alloy Material
*Two Position Three Way,Two Position Five Way
*Port Size G1/4,G1/8
*With spring return for option
*Easy to operate,Long service life
ORDERING CODE |
| HDV | 322N | 6 | S |
| Type | Function Type and Body Width | Port Size | Reset Type |
| HDV:METALWORK 70 Series hand draw valve | 322N: Two Position Three Way,Body Width 22mm | 6:G1/8" | Blank:Standard |
| 332N: Two Position Three Way,Body Width 25mm |
| 522N: Two Position Five Way,Body Width 22mm | 8:G1/4" | S:Spring Return |
| 532N: Two Position Five Way,Body Width 25mm |
| SPECIFICATION |
| Model no | HDV Series |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position Five Way Two Position Three Way |
| Port Size | G1/8" G1/4" |
| Motion Pattern | Direct Acting |
| Working Pressure | 0~1.0MPa |
| Operating Temperature | –5~60ºC |
