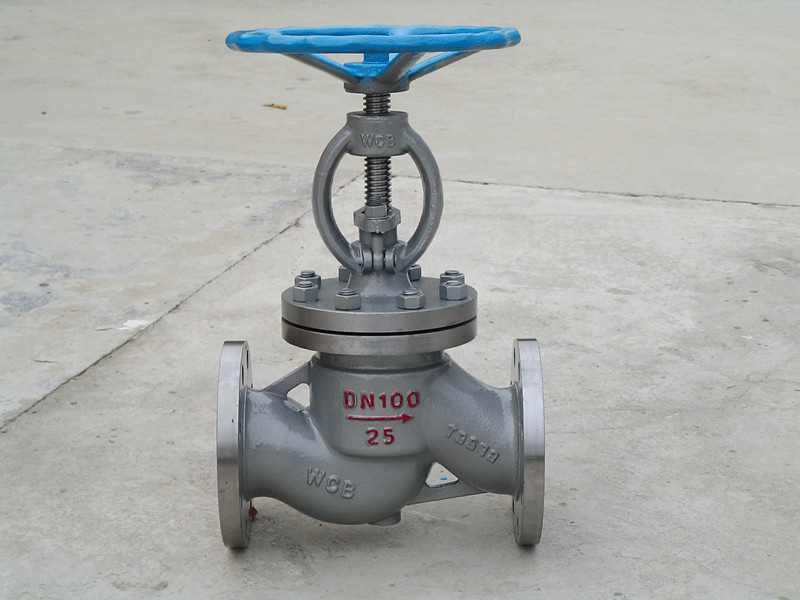

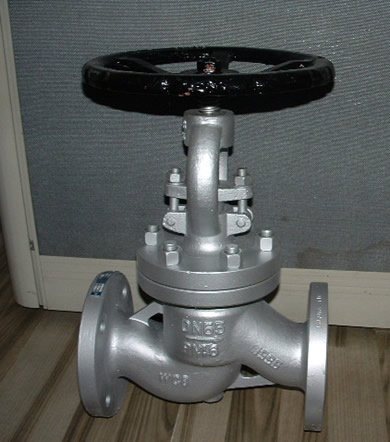

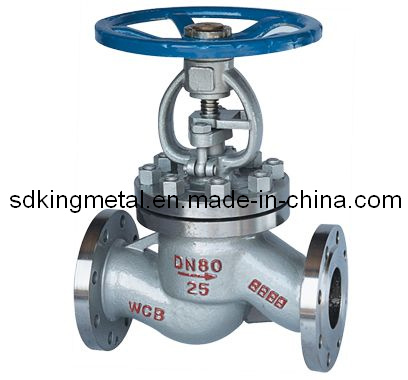

300lbs Cast Steel Globe Valve
| Price: |
US $ 12.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
Cast steel valves
Standard:ANSI MSS (also available for DIN,BS,JIS)
Certificate:ISO,API
Pressure rate:150LBS,300LBS,900LBS
Materials:A216WCB,A217WC6,A315CF8,A351CF8M,
A351CF3,A315CF3M
Design and manufacture:API 6D and API600
Inspection & Test:API 6D and API598
Face to face:API 6D and ANSI B16.5
Operation:handwheel and gear operation.
Size:1/2"-36"
Packing in poly-wooden cases
Payment by LC,TT,DP
Used for water,oil,gas etc
|
Pressure(Mpa) |
Size |

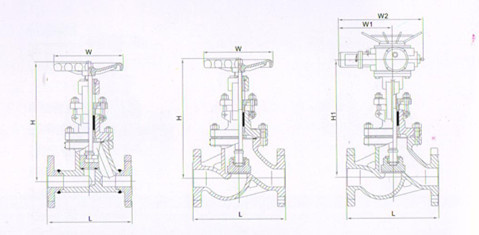

Dimensions(mm) |
Electric Actuator |
Weight(kg) |
Torque(N.m) |
Cv |
|
L |
H |
W |
H1 |
W1 |
W2 |
Handwheel |
Electric |
|
PN1.6 |
10 |
130 |
198 |
120 |
- |
- |
- |
- |
4.7 |
- |
- |
- |
|
15 |
130 |
218 |
120 |
- |
- |
- |
- |
5.2 |
- |
- |
- |
|
20 |
150 |
258 |
140 |
- |
- |
- |
- |
7.1 |
- |
- |
- |
|
25 |
160 |
275 |
160 |
- |
- |
- |
- |
7.4 |
- |
- |
- |
|
32 |
180 |
280 |
180 |
- |
- |
- |
- |
8.5 |
- |
- |
- |
|
40 |
200 |
330 |
200 |
- |
- |
- |
- |
12.5 |
- |
24 |
- |
|
50 |
230 |
350 |
240 |
645 |
371 |
590 |
DZW10A |
14 |
48 |
38 |
- |
|
65 |
290 |
355 |
280 |
690 |
371 |
590 |
DZW10A |
22.5 |
60 |
48 |
- |
|
80 |
310 |
400 |
280 |
715 |
371 |
590 |
DZW10A |
29 |
65 |
79 |
105 |
|
100 |
350 |
415 |
320 |
770 |
371 |
590 |
DZW15A |
32.5 |
71 |
98 |
189 |
|
125 |
400 |
460 |
360 |
780 |
371 |
590 |
DZW20A |
80 |
119 |
161 |
381 |
|
150 |
480 |
510 |
400 |
810 |
371 |
590 |
DZW30A |
93.5 |
210 |
245 |
428 |
|
200 |
600 |
710 |
400 |
967 |
515 |
810 |
DZW45A |
180 |
320 |
313 |
798 |
|
250 |
650 |
786 |
450 |
1143 |
515 |
810 |
DZW60A |
440 |
550 |
- |
1240 |
|
300 |
750 |
925 |
500 |
1292 |
540 |
830 |
DZW90 |
648 |
785 |
- |
1859 |
|
PN2.5 |
10 |
130 |
198 |
120 |
- |
- |
- |
- |
4.9 |
- |
- |
- |
|
15 |
130 |
218 |
120 |
- |
- |
- |
- |
5.4 |
- |
- |
- |
|
20 |
150 |
258 |
140 |
- |
- |
- |
- |
7 |
- |
- |
- |
|
25 |
160 |
275 |
160 |
- |
- |
- |
- |
7.4 |
- |
- |
- |
|
32 |
180 |
280 |
180 |
- |
- |
- |
- |
8.5 |
- |
- |
- |
|
40 |
200 |
330 |
200 |
- |
- |
- |
- |
12.5 |
- |
29 |
- |
|
50 |
230 |
350 |
240 |
645 |
371 |
590 |
DZW10A |
16 |
50 |
43 |
- |
|
65 |
290 |
355 |
280 |
690 |
371 |
590 |
DZW10A |
25 |
62 |
53 |
- |
|
80 |
310 |
400 |
280 |
715 |
371 |
590 |
DZW10A |
30 |
67 |
86 |
105 |
|
100 |
350 |
415 |
320 |
770 |
371 |
590 |
DZW15A |
34.5 |
73 |
108 |
189 |
|
125 |
400 |
460 |
360 |
780 |
371 |
590 |
DZW20A |
89 |
127 |
171 |
381 |
|
150 |
480 |
510 |
400 |
875 |
371 |
810 |
DZW30A |
98 |
215 |
262 |
428 |
|
200 |
600 |
710 |
400 |
967 |
515 |
810 |
DZW45A |
180 |
322 |
349 |
798 |
|
250 |
650 |
786 |
450 |
1153 |
515 |
830 |
DZW60A |
446 |
585 |
- |
1240 |
|
300 |
750 |
925 |
500 |
1292 |
540 |
830 |
DZW90 |
645 |
795 |
- |
1859 |
| Prod Model: |
SDCV011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-1200 |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
En API Awwa Bs |
| Application: |
Oxygen Globe Valve |
