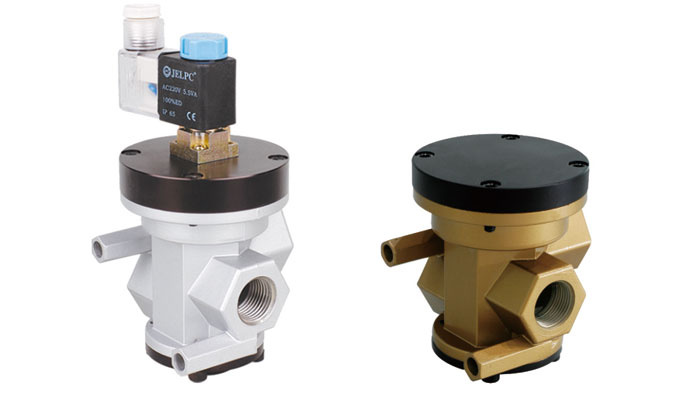

Two-position three-way stop valve which achieve the function of a two-position, three-way directional control valves and functions at high pressures with low leakage rates. In addition, the valve provides a cost effective and simplified configuration to additionally achieve the functions of a free-flowing forward check valve and a high pressure relief valve integrated with the directional control valves. The invention is directed towards providing a valve with low cost and a minimum penalty with regards to electrical power consumption.
| Model | 3VJZF-15 | 3VJZF-25 | 3AJZF-15 | 3AJZF-25 |
| Working Medium | Air(to be filtered by 40μ filter element) |
| Motion pattern | Stop Type |
| Effective Cross Section Area | 16 | 25 | 16 | 25 |
| Port size | G1/2" | G1" | G1/2" | G1" |
| Working Pressure | 0~1.0MPa |
| Max. Test Temperature | 1.5MPa |
| Operation Voltage Tolerance | -10%~+10% |
| Body Material | Aluminum |
