The standard ration flow is 1300L/min(CV=1.32), the the flow is big enough to supply large bore diameter cylinder. The new coaxial stop structure gets rid of the weak anti-dust ability of Pole type structure. Coaxial stop type structure avoids the direct fraction of seals and the valve body, and extends the seals and the valve body's life; The application of polyurethane can secure the long life.

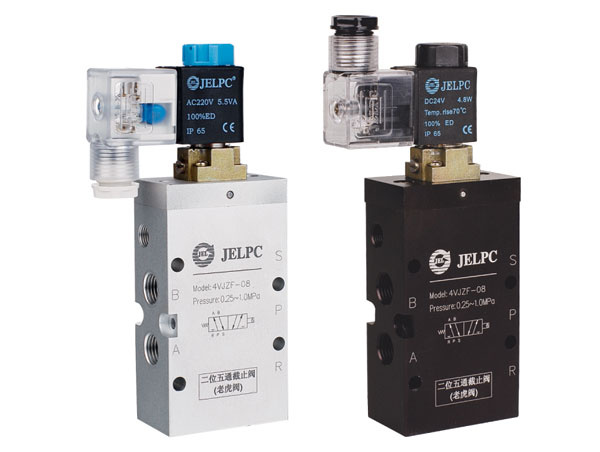

ItemType | 4VJZF-08 |
Valve type | 5 port 2 way |
Orifice size | 25mm 2 (CV=1.40) |
Port size | In=Out=Exhaust=G1/4" |
Fluid | Air(to be filtered by 40μ filter element) |
Acting | Inner guide type |
Pressure range | 0.25~1.0MPa |
Proof pressure | 1.2MPa |
Temperature | 5~50 o C |
Voltage range | -10%~+10% |
Power consumption | AC:5.5VA DC:4.8W |
Insulation | F Class |
Protection | IP65 |
Wiring form | Lead wire or Din connector |
Max frequency | 5 cycle/sec |
Min activating time | 0.05 sec |
