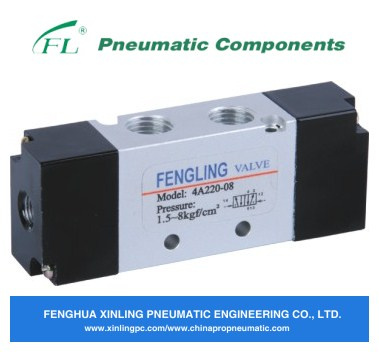

4A Series Pneumatic Valve
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Description:
4A220-08 Pneumatic Control ValveSpecification of
4A220-08 Pneumatic Control Valve:
Model | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 |
Operation Type | Inside Pilot Type |
Fluid Medium | 40 Micron Filtered Air |
Position and Way Number | Two-Position Five Way | Three-Position Five Way |
Working Pressure | 0.15--0.8Mpa(21--114psi) |
Proof Pressure | 1.2MPa(174psi) |
Working Temperature | 5--50ºC |
Port Size | Air Inlet=Air Outlet=G1/4, Exhaust=G1/8 |
Material | Aluminium Alloy |
Highest Action Frequency | 5 Cycles/second |
Effective Sectional Area | 16mm2(Cv=0.89) | 12mm2(Cv=0.67) |
Shortest Excitation Time | 0.05 Second |
Weight | 185g | 285g | 365g |

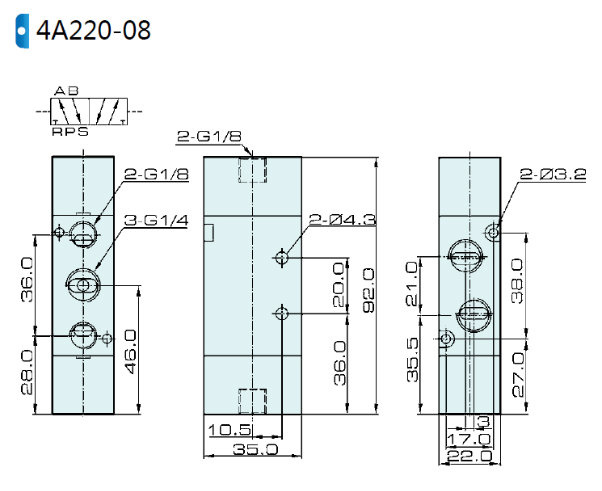

Dimension of
4A220-08 Pneumatic Control Valve:

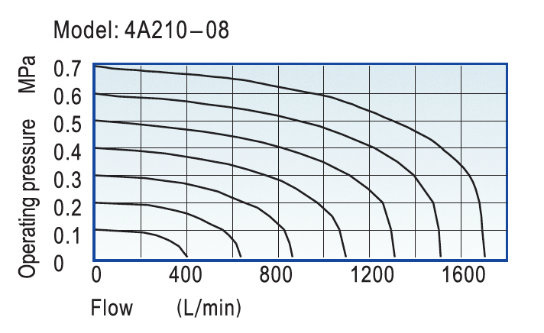

Flow Statistics of
4A210-08 Pneumatic Control Valve:

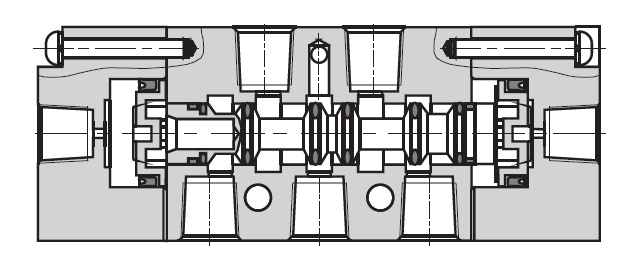

Structure of
4A220 Series Pneumatic Control Valve:
| No. | Item | No. | Item |
| 1 | Screw | 10 | Pilot Body |
| 2 | Spring | 11 | O-Ring |
| 3 | Bottom Cover | 12 | Screw |
| 4 | Bottom Cover Gasket | 13 | Screw |
| 5 | Body | 14 | Spring Holder |
| 6 | O-Ring | 15 | Return Spring |
| 7 | Spool | 16 | Spring Holder |
| 8 | Wear Ring | 17 | E Clip |
| 9 | Piston | 18 | Side Cover |
| Prod Model: |
4A220-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Type: |
Inside Pilot Type |
| Fluid Medium: |
40 Micron Filtered Air |
| Position And Way Number: |
Two-Position Five Way |
| Working Pressure: |
0.15--0.8MPa(21--114psi) |
| Proof Pressure: |
1.2MPa(174psi) |
| Working Temperature: |
5--50 Degree |
| Port Size: |
Air Inlet=Air Outlet=G3/8, Exhaust=G1/4 |
| Highest Action Frequency: |
4 Cycles/Second |
| Effective Sectional Area: |
30mm2(CV=1.68) |
| Shortest Excitation Time: |
0.05 Second |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
| Material: |
Aluminum |
