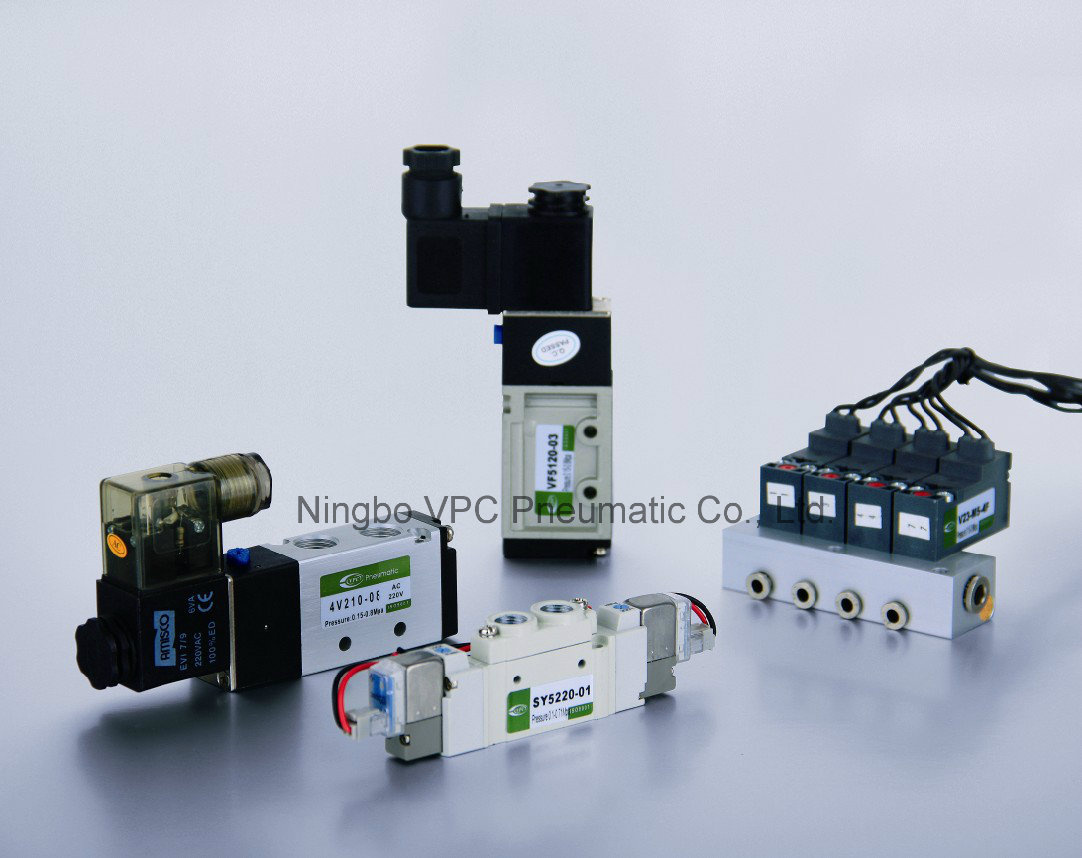

4V210 5 Port Series Solenoid Valve with Amisco Coil

Quick Details

• Type: Valves
• Place of Origin: Zhejiang, China (Mainland)
• Model Number: 4V110~410
• Brand Name: VPC
• pneumatic: valves
• coil type: AMISCO
• painting type: Brush Finishing of metal

Packaging & Delivery

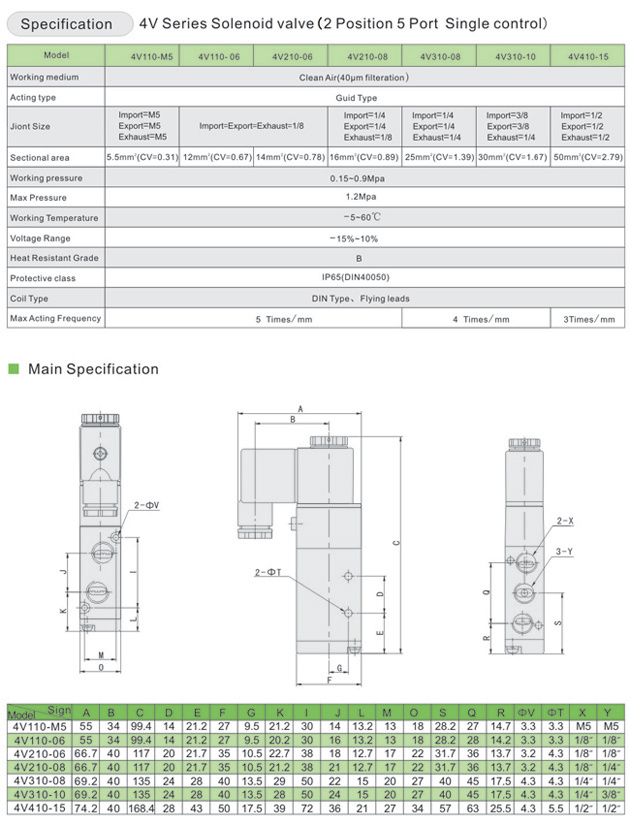

Specifications

Summary:

4V series AMISCO coil solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 typs have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.

I. AMISCO coil solenoid valves
2.Acting Type:direct acting
3.Coil Type:AMISCO coil
4.Painting type:Brush Finishing of metal

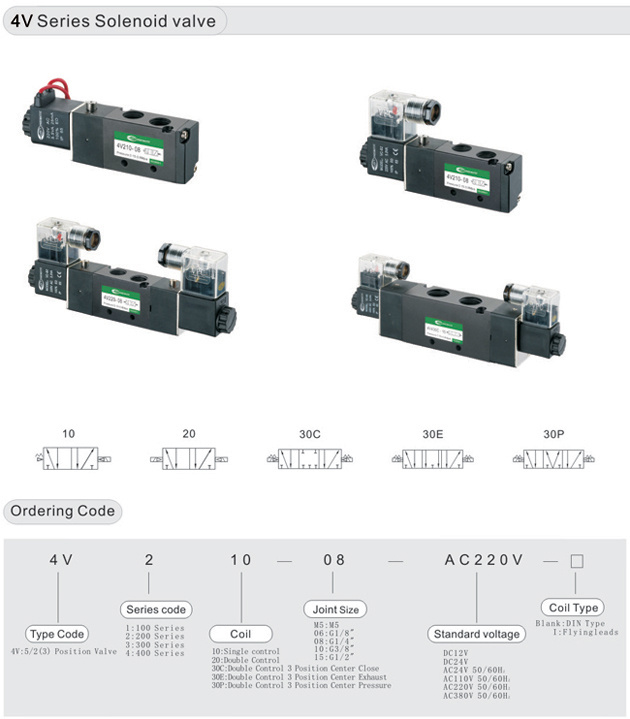

Model Choosing:

*Coil and places:

       10:single-head  double-position

       20:double-head  double-position

       30C:double-head three-position close type

       30E:double-head three-position open type

       30P:double-head three-position pressure close type

*Joint pipe bore:

 06:G1/8" / 08:G1/4" / 10:G3/8" / 15:G1/2" /  20:G3/4" / 25:G1"

*Standard voltage:

 DC12V/DC24V/AC24V  50Hz/60Hz/AC110V  50Hz/60Hz/AC220V   50Hz/60Hz/AC380V   50Hz/60Hz
