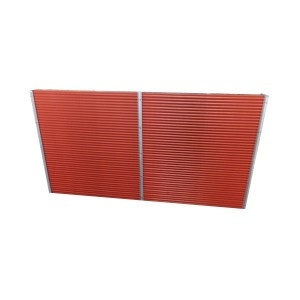

Heat Exchanger Specifications:
1. Radiator
2. Tube O. D.: 7.94mm.
3. Materials: Copper tube hydrophilic aluminum fin;
4. This product welded depending on the material and application.
5. Heat exchanger outline size and shape: Can be manufactured according to clients' requirements.
Heat ExchangerFeatures:
1) material: Copper tube and fin, galvanized plate
2) fin type: Louver fin or flat fin or corrugated fin
3) copper pipe: Diameter 7mm or 8mm or 9.52mm, grooved or smooth tube
4) pitch of fins can be adjusted between 1.8— 5.8mm.
5) pitch of holes and pitch of rows: 25*21.65MM and 12.7*19.05MM
6) suitable for R134A, R22, R404A, R407C refrigerant and so on
7) voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
8) different alternative condensing fans available: Shaded pole or outer rotor fan motor.
9) did gas examination under 3.0Mpa air pressure to ensure the tightness.
10) Widely used in refrigeration industry, cold room and other cooling system.
11) we can supply products as per customized samples or drawing.
12) producing procedure: Tube bending, punching fin, expanding, digressing, drying, welding, leakage test, bending, inspection, packing.
Product Introduction:
1. Refrigeration Copper Tube Evaporator with hydrophilic aluminium fin
2. Raw Material: Copper tube, aluminium fin, galvnized plate and stainless steel plate
3. Size of copper pipe: Diameter: 7/7.94/9.52/12.7/12/15.88/20mm, Inner Grooved Or smooth tube.
4. Auminium foil: Hydrophilic or bare
5. Fin type: Louver Fin, Flat fin, corrugated fin
6. Pitch of fins can be adjusted between 1.8-5.8mm
7. Pitch of holes and pitch of rows: 25x21.65mm, 19.05x12.7mm, 25.4x22mm, 25.4X19.05mm, 25.4X15.88mm, 50x50mm, 38x33mm, 31.75x27.5mm, 21x12.7mm
3.0MPA Air Pressure bitrogen test leaklees.
| Fin Pattern | Copper Tube O. D. (mm) | Row Space(mm) | Hole Space(mm) | Fin Thickness(mm)
| Fin Space(mm) |
| Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin |
| A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / |
| B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / |
| C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
| D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / |
| E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
| F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / |
| G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
| H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / |
| I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
| J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / |
| K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
