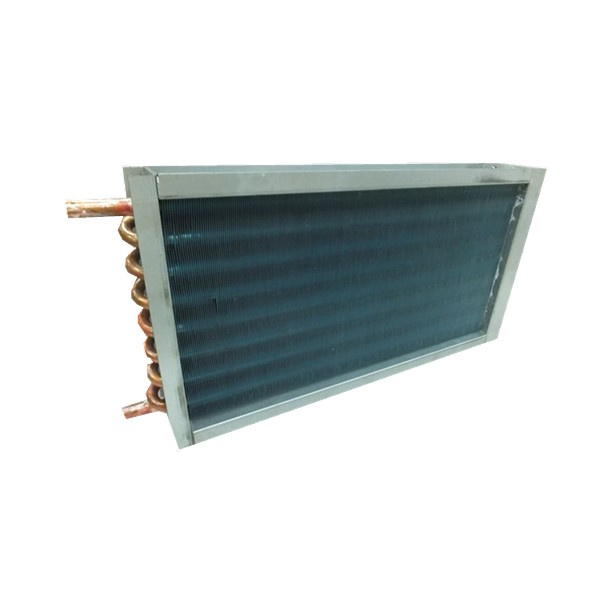

1. Fin tube type, high technology, heat transfer area is 8 times than the light tube, fin tube type including High frequency welding/Extruded/L-foot/H type, we have our own technicals team, whole equipment can be supplied or single fin tube is ok.
2. Our main products is various types of heat exchanger and condenser with bimetal finned tube or single metal finned tube or heat pipe, material can be aluminum, steel, stainless steel, copper; And the tube type are welded or seamless, both of them are in high quality and lower cost.
3. Different kinds of this productions can be developed and designed according to your requirements, quality can be guaranteed with our more than 15 years factory experience, you can rest assured.
4. Weld able material: Carbon steel, corrosion resistant steel, stainless steel, alloy steel
5. Top quality, competitive price, fast delivery, excellent service
Key process:
Preparing materials cleaning printing rolling annealing - blowing up punching folding and sharpening adding the capillary assemble welding leakage testing cleaning and drying coating - inspection packing.Item | Radiator Type | Operation medium | Operation pressure ( MPa ) | Application |
1 | Φ 16/Φ 9.52/Φ 12.7 Copper tube with aluminium fin | Cold/hot water | ≤ 1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
2 | Φ 18/Φ 20 Steel pipe winding with steel sheet | Steam | ≤ 0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
3 | Φ 16/Φ 9.52/Φ 12.7 Copper tube with aluminium fin | Brine | ≤ 1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
4 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | Ethylene glycol | ≤ 1.6 | Used of energy recovery and low temperature system devices |
5 | Φ 16 Copper tube with aluminium fin | Ice mud | ≤ 1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
6 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | R22 | ≤ 1.9 | Used for industry and commerce air conditioning system |
7 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | R407C | ≤ 1.9 | Used for industry and commerce air conditioning system |
8 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | R134a | ≤ 3.1 | Used for vehicle and vessel etc transportation devices |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
