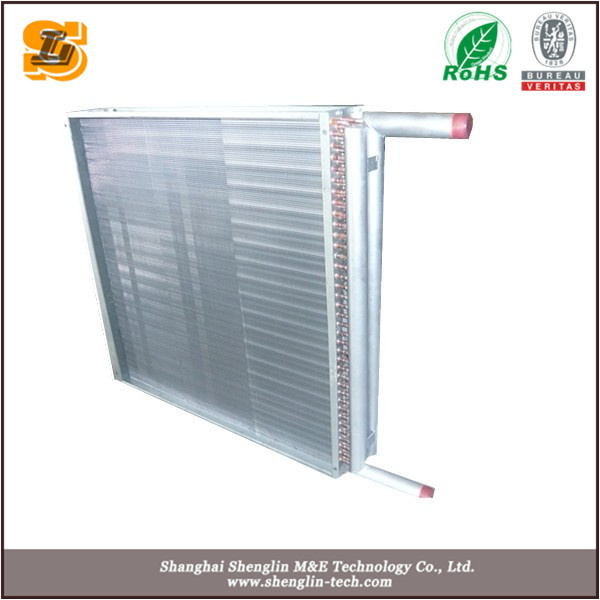

Tube and Fin Type:
1. Copper pipe type: Inner grooved pipe or bare pipe
2. Foil type: Hydrophilic fin, e-coating, bare fin
3. Fin type: Flat fin, sine wave with blade fin, smooth sine wave fin, window fin,
Specification:
1. Fin plate: Optical aluminum foil, hydrophilic aluminum foil, black hydrophilic
Aluminum foil and copper foil;
2. Heat exchange tube: Purple copper pipe with internal screws, purple copper-based optical tube and copper-nickel alloy tube;
3. Connector pipe: Purple copper pipe and seamless steel pipe;
4. Connection pipe: Purple copper pipe, brass pipe and seamless steel pipe;
5. Sheet metal: Aluminum plate, galvanized steel plate, stainless steel plate and
Embossed aluminum plate;
6. Special treatment: Spraying and coating, anodic oxidation and electrophor
Feature:
1. High performance
2. The subcooler integrated with the condenser further cools the liquid
Refrigerant, resulting in increased refrigerant enthalpy and improved
Evaporator cooling performance
3. Thinner tubes and fins improve the heat exchange rate
4. Smaller header tank and lower side plate height increase the effective
Heat exchange area of the core part that exchanges heat, without
Increasing the installation space
5. Small size, light weight and easy installation
6. The tube's zinc diffusion layer improves corrosion resistance, resulting in reduced
Tube plate thickness
MODEL |
SIZE
(MM) |
HEATING
AREA
(M2) |
HP |
PATTERN |
INLET
( MM) |
OUTLET
(MM) |
CAPACITY
(KW) |
FIN
PITCH
(MM) |
FIN
LENGTH
(MM) |
FAN |
VOLTAGE
(V) |
|
|
CD-2 |
320*100
*235 |
2 |
1/4 |
2*4 |
3/8 |
3/8 |
0.6 |
2.35 |
270 |
200 |
220 |
|
CD-3.4 |
320*100
*235 |
3.4 |
3/8 |
3*4 |
3/8 |
3/8 |
1 |
2.1 |
270 |
200 |
220 |
|
CD-4.4 |
370*100
*285 |
4.4 |
1/2 |
3*5 |
3/8 |
3/8 |
1.3 |
2.4 |
325 |
250 |
220 |
|
CD-5.4 |
440*100
*330 |
5.4 |
3/4 |
3*6 |
3/8 |
3/8 |
1.6 |
2.85 |
392 |
300 |
220 |
|
CD-7 |
440*135
*330 |
7 |
1 |
4*6 |
12 |
12 |
2 |
2.9 |
390 |
300 |
220 |
|
CD-8.4 |
500*130
*430 |
8.4 |
1.2 |
3*8 |
16 |
12 |
2.3 |
2.8 |
455 |
300 |
220/380 |
|
CD-11.5 |
480*180
*430 |
11.5 |
1.5 |
4*8 |
16 |
12 |
3.5 |
2.6 |
430 |
350 |
220/380 |
|
CD-15 |
550*180
*480 |
15 |
2 |
4*9 |
16 |
12 |
4.4 |
2.55 |
490 |
350 |
220/380 |
|
CD-18 |
590*180
*530 |
18 |
2.5 |
4*10 |
19 |
16 |
5.2 |
2.55 |
530 |
350 |
220/380 |
|
CD-22 |
590*180
*530 |
22 |
3 |
5*10 |
19 |
16 |
6.4 |
2.6 |
530 |
350 |
380 |
|
CD-25 |
750*180
*680 |
25 |
3.5 |
4*11 |
19 |
16 |
8.1 |
3 |
660 |
400 |
380 |
|
CD-21 |
840*180
*430 |
21 |
3 |
3*8 |
16 |
12 |
6.1 |
1.95 |
790 |
300*2 |
380/220 |
|
CD-28 |
900*180
*430 |
28 |
3.5 |
4*8 |
19 |
16 |
8.2 |
2.1 |
840 |
350*2 |
380 |
|
CD-33 |
900*200
*480 |
33 |
4 |
5*9 |
19 |
16 |
11.2 |
2.45 |
840 |
350*2 |
380 |
|
CD-36 |
1015*180
*580 |
36 |
5 |
4*11 |
22 |
19 |
12.6 |
2.5 |
950 |
400*2 |
380 |
|
CD-43 |
1015*180
*680 |
43 |
6 |
4*13 |
22 |
19 |
14.8 |
2.5 |
950 |
400*2 |
380 |
|
CD-48 |
1250*200
*630 |
48 |
6.5 |
4*12 |
25 |
22 |
17.5 |
2.5 |
1172 |
400*2 |
380 |
|
Fin
Pattern |
Copper
Tube
O.D.
(mm) |
Row
Space
(mm) |
Hole
Space
(mm) |
Fin
Thickness
(mm)
|
Fin Space(mm) |
Flat fin |
Sine wave
with blade fin |
Smooth sine
wave fin |
Window
fin |
Sesamoid
fin |
A |
7 |
12.7 |
21 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
B |
7 |
13.2 |
17.6 |
0.105 |
/ |
/ |
1.3 |
1.3 |
/ |
C |
7 |
12.7 |
20.4 |
0.105 |
/ |
/ |
1.3~1.8 |
1.3~1.8 |
/ |
D |
7 |
12.7 |
19.05 |
0.105 |
/ |
/ |
1.3~1.8 |
1.3~1.8 |
/ |
E |
7.94 |
15.88 |
25.4 |
0.105 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
1.8~3.0 |
/ |
E |
7.94 |
19.05 |
22 |
0.105~0.13 |
1.4~3.0 |
1.4~3.0 |
1.4~3.0 |
1.4~3.0 |
/ |
F |
9.52 |
22 |
25.4 |
0.105~0.15 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
G |
9.52 |
22 |
25.4 |
0.18~0.4 |
3.5~6.35 |
/ |
/ |
/ |
/ |
H |
9.52 |
21.65 |
25 |
0.105~0.18 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
1.6~3.2 |
/ |
I |
9.52 |
21.65 |
25 |
0.15~0.24 |
3.2~6.35 |
3.2~6.35 |
3.2~6.35 |
/ |
/ |
J |
12.75 |
27.5 |
31.75 |
0.115~0.15
|
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.5~3.5 |
1.6~3.2 |
K |
15.88 |
33 |
38.1 |
0.115~0.15 |
1.5~4.0 |
1.5~4.0 |
1.5~4.0 |
/ |
/ |
L |
15.88 |
34.64 |
40 |
0.115~0.15 |
/ |
2.6~3.5 |
2.6~3.5 |
/ |
/ |
Item |
Evaporator Type |
Operation medium |
Operation pressure
( MPa ) |
Application |
1 |
Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin |
Cold/hot water |
≤1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices |
2 |
Φ18/Φ20
Steel pipe winding with steel sheet |
Steam |
≤0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices |
3 |
Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin |
Brine |
≤1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems |
4 |
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin |
Ethylene glycol |
≤1.6 |
Used of energy recovery and low temperature system devices |
5 |
Φ16
Copper tube with aluminium fin |
Ice mud |
≤1.6 |
Used for dry operation condition, fresh air dehumidification etc systems |
6 |
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin |
R22 |
≤1.9 |
Used for industry and commerce air conditioning system |
7 |
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin |
R407C |
≤1.9 |
Used for industry and commerce air conditioning system |
8 |
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin |
R134a |
≤3.1 |
Used for vehicle and vessel etc transportation devices |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
