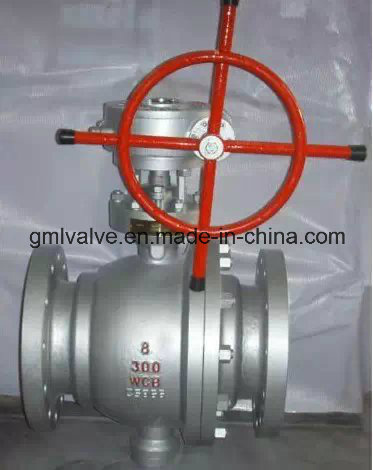

DIN ball valve Q41F_1
Products Range
Size: 2" ~ 12" (DN50 ~ DN300)
Rating: ANSI 150lb, 300lb, 600lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design Features:
Full port or reduced port
Floating ball design
Blowout-proof stem
Casting or forging body
Fire safe design to API 607/ API 6FA
Anti-static to BS 5351
Cavity pressure self relief
Optional locking device
| PN | DN | d1 | D | b | k | h1 | d3 | S | h2 | d4 | f | Bolts Num. | d2 | d5 | d6 | d7 | e | Flanges weight |
1 | 2 |
DIN 2632 | 10 bar | 200 250 300 350 400 500 600 700 | 219.1 273.0 323.9 355.6 406.4 508.0 610.0 711.0 | 219.0 273.0 325.0 351.0 402.0 500.0 609.6 720.0 | 340 395 445 505 565 670 780 895 | 24 26 26 26 26 28 28 30 | 295 350 400 460 515 620 725 840 | 62 68 68 68 72 75 80 80 | 235 292 344 385 440 542 642 745 | 5.9 6.3 7.1 7.1 7.1 7.1 7.1 8 | 16 16 16 16 16 16 18 18 | 268 320 370 430 482 585 685 800 | 3 3 4 4 4 4 5 5 | 8 12 12 16 16 20 20 24 | 22 22 22 22 26 26 30 30 | 220 274 325 368 420 520 620 720 | 272 327 377 437 488 593 694 809 | - - - - - - - - | 2 2 2 2 2 2 2 2 | 11.3 14.7 17.4 23.6 28.6 38.1 44.6 62.4 |
DIN 2633 | 16 bar | 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 | 26.9 33.7 42.4 48.3 60.3 76.1 88.9 114.3 139.7 168.3 219.1 273.0 323.9 355.6 406.4 | 28.0 34.0 42.0 48.0 60.0 76.0 89.0 114.0 140.0 168.0 219.0 273.0 325.0 351.0 402.0 | 105 115 140 150 165 185 200 220 250 285 340 405 460 520 580 | 16 16 16 16 18 18 20 20 22 22 24 26 28 30 32 | 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 | 38 38 40 42 45 45 50 52 55 55 62 70 78 82 85 | 40 45 56 64 75 90 105 131 156 184 235 292 344 390 445 | 2.3 2.6 2.6 2.6 2.9 2.9 3.2 3.6 4 4.5 5.9 6.3 7.1 8 8 | 6 6 6 7 8 10 10 12 12 12 16 16 16 16 16 | 58 68 78 88 102 122 138 158 188 212 268 320 378 438 490 | 2 2 2 3 3 3 3 3 3 3 3 3 4 4 4 | 4 4 4 4 4 4 8 8 8 8 12 12 12 16 16 | 14 14 18 18 18 18 18 18 18 22 22 26 26 26 30 | 28 35 43 49 61 77 90 115 141 169 220 274 325 368 420 | 60 70 81 91 106 126 141 161 191 217 272 328 383 443 494 | - - - - - - - - - - - - - - - | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 0.95 1.14 1.69 1.86 2.53 3.06 3.70 4.62 6.30 7.75 11.0 15.6 22.0 31.2 39.3 |
DIN 2635 | 40 bar | 20 25 32 40 50 65 80 | 26.9 3.7 42.4 48.3 60.3 76.1 88.9 | 28.0 34.0 42.0 48.0 60.0 76.0 89.0 | 105 115 140 150 165 185 200 | 18 18 18 18 20 22 24 | 75 85 100 110 125 145 160 | 40 40 42 45 48 52 58 | 40 46 56 64 75 90 105 | 2.3 2.6 2.6 2.6 2.9 2.9 3.2 | 6 6 6 7 8 10 12 | 58 68 78 88 102 122 138 | 2 2 2 3 3 3 3 | 4 4 4 4 4 8 8 | 14 14 18 18 18 18 18 | 28 35 43 49 61 77 90 | 60 70 81 91 106 126 141 | - - - - - - - | 2 2 2 2 2 2 2 | 1.06 1.29 1.88 2.33 2.82 3.74 4.75 |
