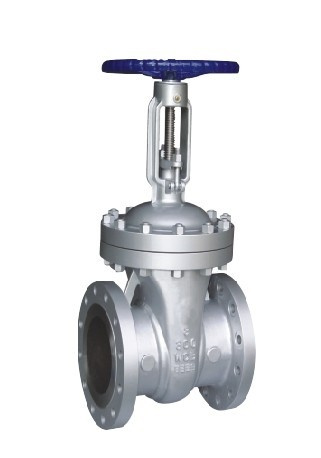

Applicable standard
Steel gate valves: API 600/API6D
Steel gate valves: ISO 10434/ISO14313
Steel valves: ASME B16.34
Face to face: ASME B16.10
End flangs: ASME B16.5
Butt welding ends: ASME B16.25
Inspection and test: API 598/API 6D
Design description
Full port design
OS& Y, Outside screw and youke
BB. Bolted bonnet
Flexible wedge, fully guided
Chioce of solid or split wedge
Renewable seat rings
Forged T-head stem
Other
1. Delivery Time: 25 days after order conformed.
2. Standard: EN, MSS, API, AWWA, BS
3. Operation: Level operation
4. Body: Cast iron, stainless steel 304/316, aluminum bronze
5. Painting: PTFE coating, nylon painting
6. Stem: CS, SS416, SS410, SS304, SS431
7. Seat: NBR, EPDM, PTFE
8. Pressure: PN10, PN16
9. Size: 2''-24''
10. Packaging: Export poly wooden cases, or as per customers' requirements
11. Payment: By L/C, T/T and D/P

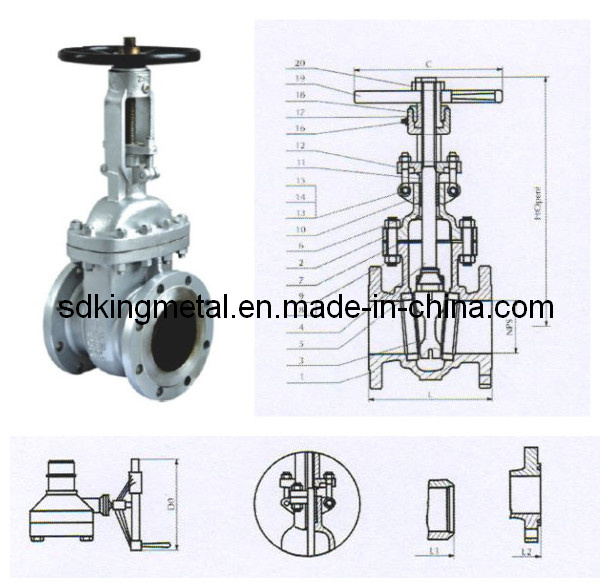

| NO | Part name | ASTM Material |
| Carbon steel | 1 1/4 Cr- 1/2 Mo | Carbon steel |
| 1 | Body | A216-WCB | A214-WC6 | A352-LCB |
| 2 | Bonnet | A216-WCB | A217-WC6 | A352-LCB |
| 3 | Wedge | A216-WCB+CR13 | A217-WC6+HF | A352-LCB+CR13 |
| 4 | Stem | A182-F6a | CR-MO-V | A182-F6a |
| 5 | Seal ring | A105+CR13 | A182-F11+HF | A350-LF2+CR13 |
| 6 | Stem backseat | A276-420 | A276-304 | A276-420 |
| 7 | Bonnet gasket | Spiral wound(Graphite+304) |
| 8 | Bonnet stud | A193-B7 | A193-B16 | A320-L7 |
| 9 | Bonnet stud nut | A194-2H | A194-7 | A194-4 |
| 10 | Packing | Graphite |
| 11 | Gland | A276-420 | A276-304 | A276-420 |
| 12 | Gland flange | A216-WCB | A217-WC6 | A352-LCB |
| 13 | Eyebolt pin | Carbon steel | A276-420 | Carbon steel |
| 14 | Eyebolt nut | Carbon steel | A193-B7 | Carbon steel |
| 15 | Grease fitting | Carbon steel | A194-2H | Carbon steel |
| 16 | Yokesleeve | Brass + steel |
| 17 | Yokesleeve jam nut | Aluminum - Bronze |
| 18 | Handwheel | Carbon steel |
| 19 | Handwheel nut | Malleable iron |
| 20 |
| Carbon steel |
| Dimensions date |
| Size | L(RF) | L1(BW) | L2(RTJ) | H(open) | C | WT.(kg) |
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | RF | BW |
| 1 1/2 | 40 | 6.5 | 165 | 6.5 | 165 | 7 | 178 | 15.7 | 392 | 7.86 | 200 | 18.5 | 15.5 |
| 2 | 50 | 7 | 178 | 8.5 | 216 | 7.5 | 191 | 15.25 | 368 | 8 | 200 | 18 | 15 |
| 2 1/2 | 65 | 7.5 | 191 | 9.5 | 241 | 8 | 203 | 17 | 434 | 8 | 200 | 25 | 18 |
| 3 | 80 | 8 | 203 | 11.12 | 283 | 8.5 | 216 | 18.88 | 480 | 10 | 250 | 32 | 26 |
| 4 | 100 | 9 | 229 | 12 | 305 | 9.5 | 242 | 23 | 584 | 12 | 300 | 50 | 41 |
| 6 | 150 | 10.5 | 267 | 15.88 | 403 | 11 | 279 | 30.5 | 765 | 12 | 300 | 77 | 69 |
| 8 | 200 | 11.5 | 292 | 16.5 | 419 | 12 | 305 | 37.62 | 956 | 14 | 350 | 121 | 108 |
| 10 | 250 | 13 | 330 | 18 | 457 | 13.5 | 343 | 45.5 | 1149 | 16 | 400 | 478 | 156 |
| 12 | 300 | 14 | 356 | 19.75 | 502 | 14.5 | 368 | 53.12 | 1350 | 18 | 450 | 265 | 248 |
| 14 | 350 | 15 | 381 | 22.5 | 572 | 15.5 | 394 | 59.38 | 1508 | 20 | 500 | 363 | 330 |
| 16 | 400 | 16 | 406 | 24 | 610 | 16.5 | 419 | 67 | 1703 | 22 | 550 | 463 | 424 |
| 18 | 450 | 17 | 432 | 26 | 660 | 17.5 | 445 | 74.5 | 1892 | 24 | 600 | 621 | 587 |
| 20 | 500 | 19 | 457 | 28 | 711 | 18.5 | 470 | 83.5 | 2119 | 26 | 640 | 792 | 752 |
| 24 | 600 | 20 | 508 | 32 | 813 | 20.5 | 521 | 98.25 | 2500 | 29 | 720 | 1190 | 1144 |
| 26 | 650 | 22 | 559 | 34 | 864 | - | - | 110.5 | 2806 | 29 | 720 | 1521 | 1570 |
| 28 | 700 | 24 | 610 | 36 | 914 | 24.5 | 622 | 116.5 | 2960 | 32 | 800 | 1838 | 1900 |
| 30 | 750 | 24 | 610 | 36 | 914 | 24.5 | 622 | 124 | 3150 | 32 | 800 | 2261 | 3310 |
| 32 | 800 | 28 | 711 | 38 | 965 | 26.5 | 673 | 129 | 3280 | 38 | 950 | 2490 | 2540 |
| 36 | 900 | 28 | 711 | 40 | 1016 | 28.5 | 724 | 146.5 | 3720 | 40 | 1000 | 3310 | 3380 |
| 40 | 1000 | 30 | 762 | 42 | 1067 | - | - | 183.83 | 4670 | 30 | 760 | 4815 | 4840 |
| 42 | 1050 | 31 | 787 | 43 | 1092 | - | - | 193.75 | 4920 | 30 | 760 | 5300 | 5275 |
| 48 | 1200 | 34 | 864 | 46 | 1168 | - | - | 217.5 | 5525 | 30 | 760 | 7110 | 7050 |
